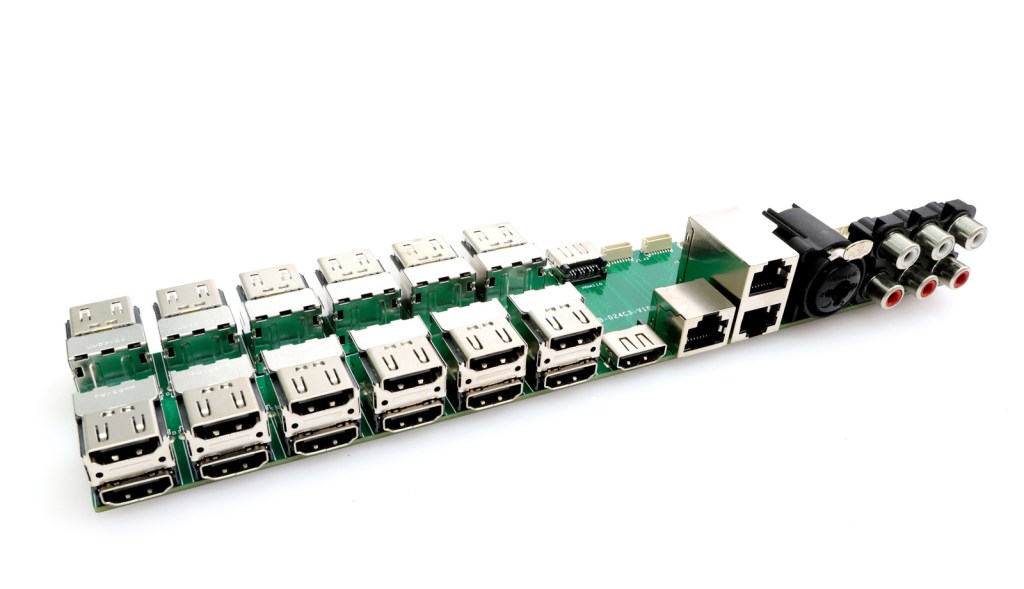

The COB-D24C3 i-Connect Board adopts a BlockCore modular design and with 13xHDMI, 3xLAN, offering flexible solutions for various industrial communication needs.
★ Modular Design — BlockCore for flexible multi-scenario use
★ 13x HDMI; 3x LAN; 1× XLR; 6× RCA
★ Specification Download
| Parameter | Description |
| Input Interface | 13 HDMI、3 Lans、1× XLR、6× RCA |
| EDID Mode | Fixed |
| Supported Resolutions | 640×480 ~ 1920×1080@60Hz / 3840×2160@30Hz |
| HPD (Hot Plug Detect) | Supported |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 179 x 50 mm |
| Mounting Method | Screw Holes |
COB-D24C3 Dimensions
