The COB-D2212 i-Connect Board adopts a modular design, featuring 5 COM ports and 2 USB interfaces, with optional RS-485/422 configuration for versatile communication needs. Compact, stable, and easy to integrate, it is ideal for industrial automation, control systems, and embedded applications.
★ Modular Design — LEGO MODE for flexible multi-scenario use
★ 5xCOM, RS-232/485, 2XUSB
★ Specification Download
| Parameter | Description |
| Ports | 2xRS485x2(1B2A)，3xRS232，2xUSB2.0 Type-A |
| Applicable Structure | L300 |
| Compatible Motherboards | CES-1602, CES-1902 |
| Reserved function | / |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 266 x 33.5mm |
| Mounting Method | Screw Holes |

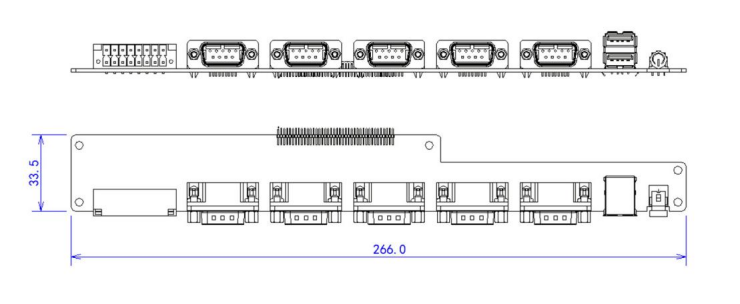

Dimensions
