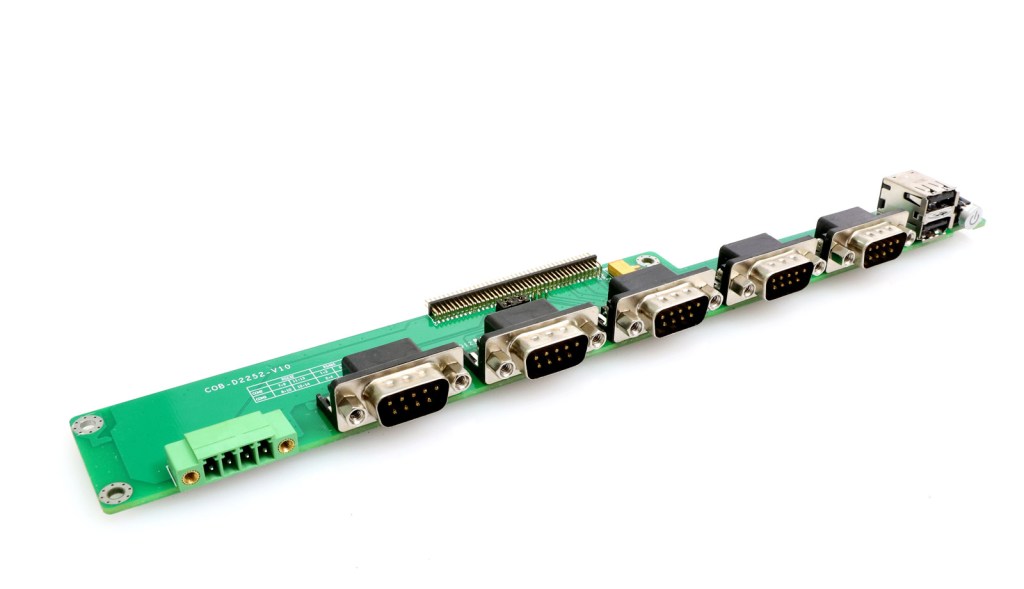

The COB-D2252 i-Connect Board adopts a modular design with 5 COM ports and 2 USB interfaces, supporting optional RS-485/422 communication for flexible industrial connectivity. It includes an external switch button for convenient control and operation. Compact and reliable, the COB-D2252 is ideal for industrial automation, control systems, and embedded applications.
★ Modular Design — LEGO MODE for flexible multi-scenario use
★ 5xCOM, RS-232/485, 2XUSB
★ Externally switch button
★ Specification Download
| Parameter | Description |
| Ports | USB Ports: 2×USB 2.0COM Ports: 5×COM , (RS-232 / RS-485 configurable) |
| External Controls | Switches and buttons can be extended externally |
| Applicable Structure | L300 |
| Compatible Motherboards | CES-1602 , CES-1902 |
| Reserved function | / |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 266 x 33.5mm |
| Mounting Method | Screw Holes |
Dimensions
