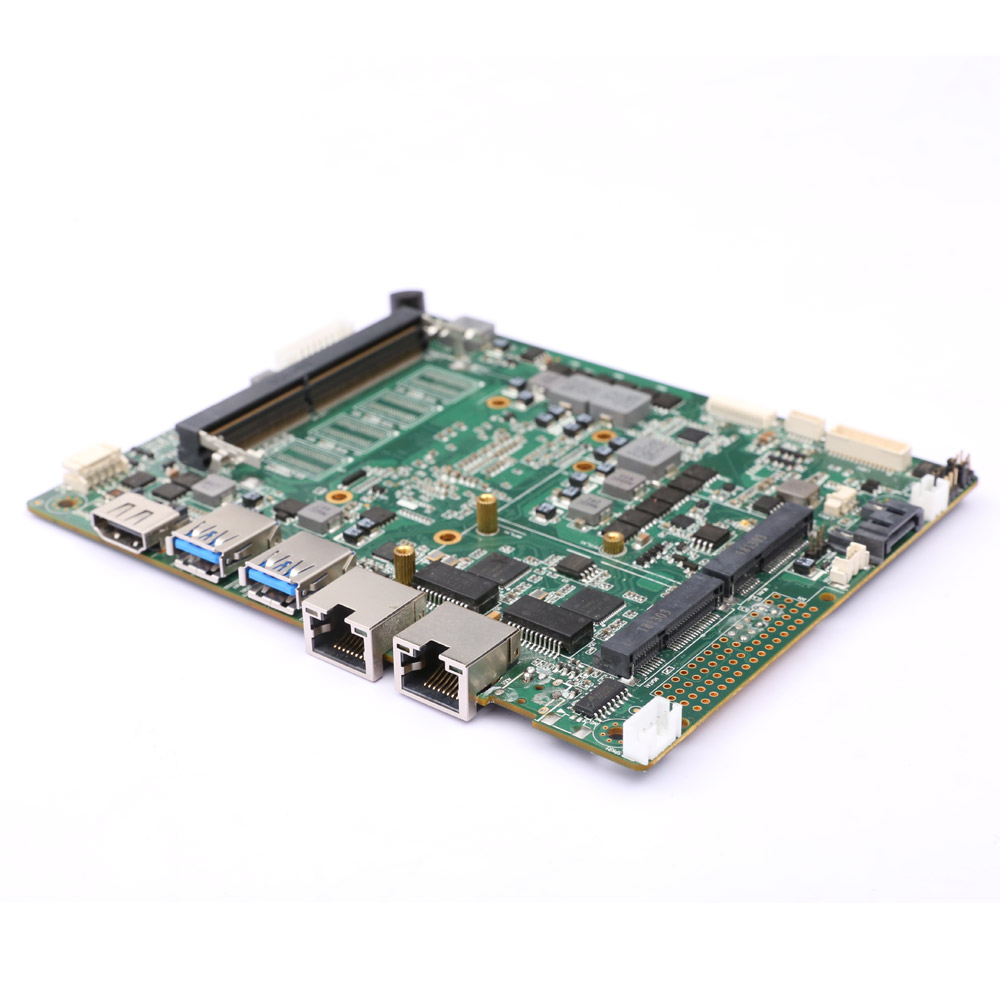

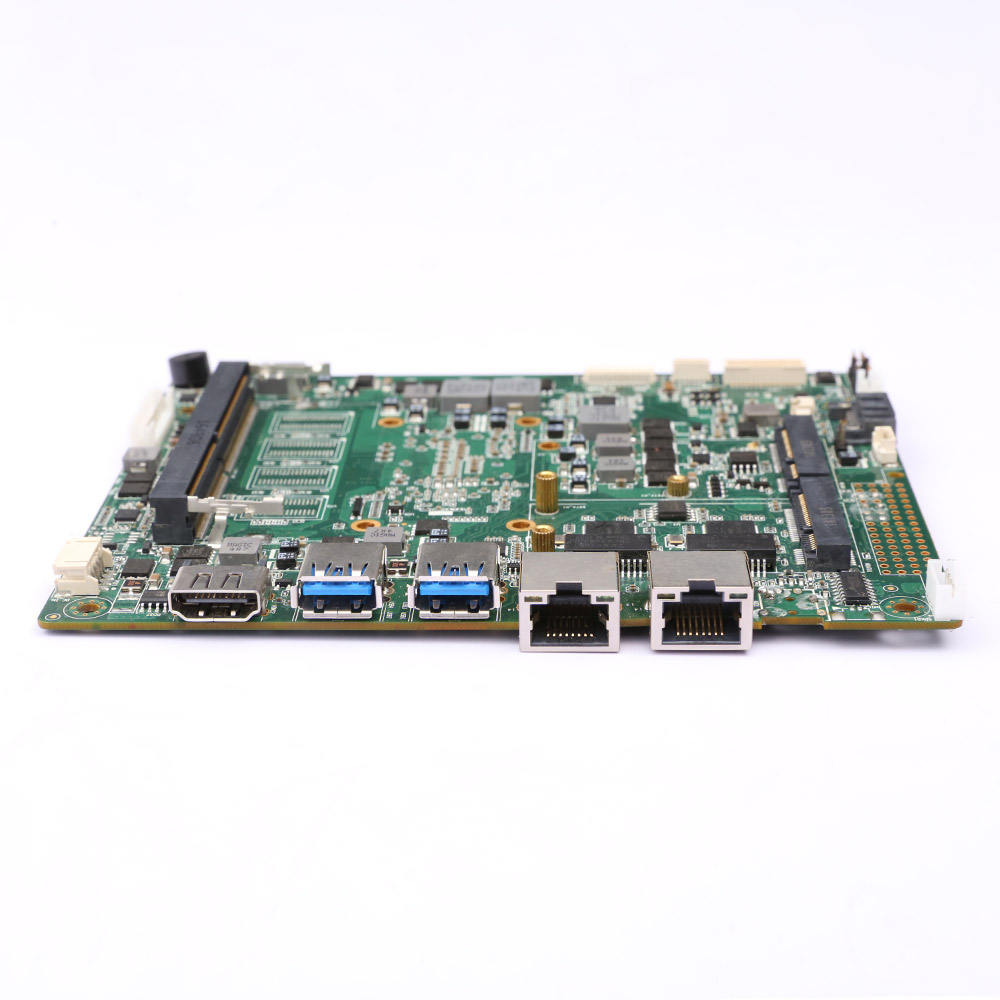

CES-3802 based on CESIPC BlockCore modular technology, it supports 7th Gen Intel® Core® i3-7100U / i5-7200U / i7-7500U processors, The CES-3802 provides flexible, high-performance embedded solutions. With HDMI/VGA/LVDS display outputs, dual LAN, and modular expansion, it adapts to various industrial needs.
Engineered for harsh conditions with wide-temperature and humidity resistance, the CES-3802 is widely applied in industrial automation, smart retail, medical devices, transportation, and digital signage.
★ Modular Design — BlockCore technology for flexible multi-scenario combinations
★ High Performance & Energy Efficient — 7th Gen Intel® Core® processors with superior performance
★ Rich Expandability — I-Door and miniPCIe supporting multiple functional modules
★ Multi-Display Output — HDMI, VGA, and LVDS to meet diverse display requirements
★ Industrial-Grade Reliability — Operates stably in harsh environments from 0–60℃ with high humidity
★ High-Speed Connectivity — USB 3.0 + USB 2.0, dual Intel Gigabit Ethernet ports
★ Wide System Compatibility — Supports Windows 10 / 11 and Linux systems
★ Easy Maintenance & Deployment — Modular layout shortens installation and maintenance time
| Item | Specification |
|---|---|
| Processor | 7th Gen Intel® Core® (i3-7100U / i5-7200U / i7-7500U) |
| Chipset | Intel® Skylake / Kaby Lake |
| Memory | High-speed DDR4, 1 onboard 4GB + 1 slot (16GB), up to 20GB |
| USB Ports | 6× USB 2.0; 4× USB 3.0 (optional 3× USB 3.0) |
| Storage | 1× SATA 2.0; 1× mSATA |
| COM Ports | 2× RS232 |
| Display | VGA + HDMI + LVDS + eDP (choose 3 of 4) |
| LAN | 2× Intel® I211 Gigabit Ethernet (10/100/1000 Mbps) |
| Audio | 1× Mic in, 1× Line out, 2W speaker |
| Expansion | Half Mini-PCIe |
| GPIO | 6 channels |
| Power Supply | 19V DC, supports power management |
| Dimensions | 151mm (W) × 118mm (D) |
| Operating Temp | -25℃ to 60℃ (optional extended temperature support) |
| Storage Temp | -30℃ to 70℃; Humidity 0%–90%, non-condensing |
| Supported OS | Windows 7 / Windows 8 / Windows 10 / Linux |
| Custom Services | Custom BIOS, system encryption, system recovery, emergency restore, rear I/O customization |
