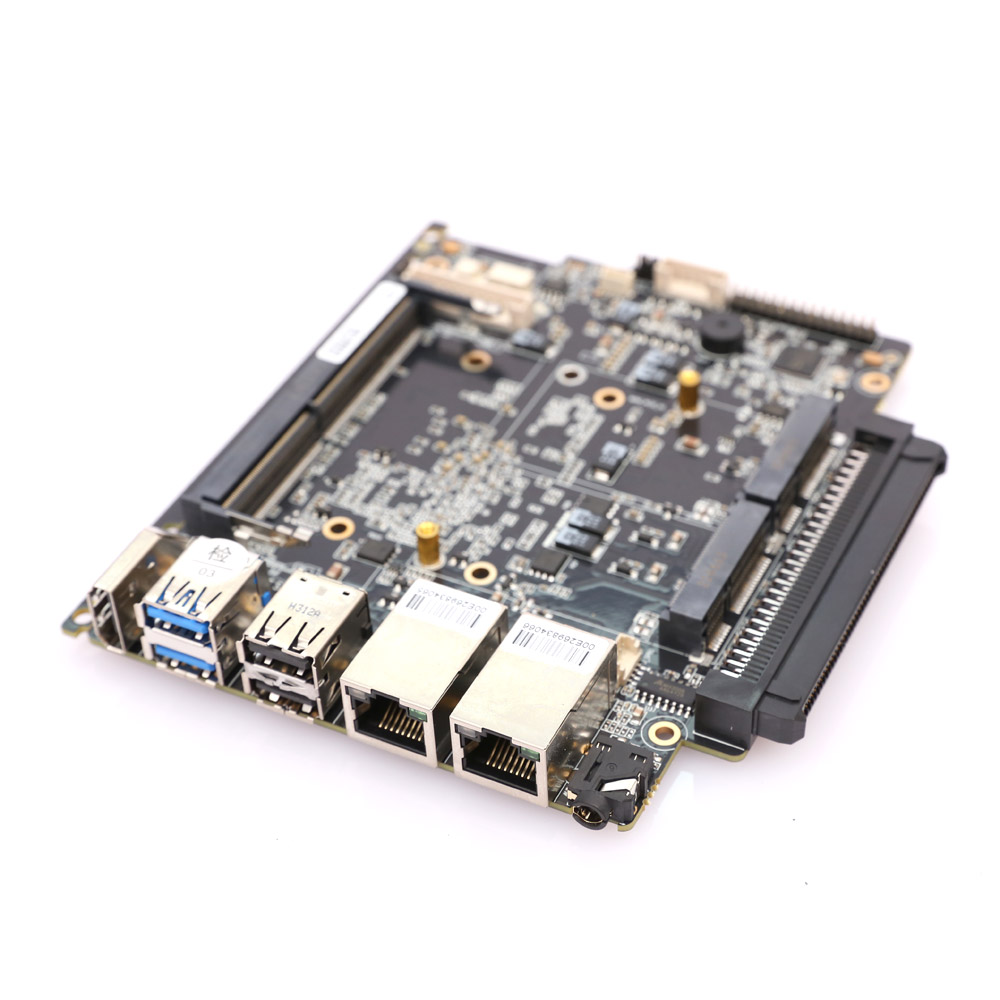

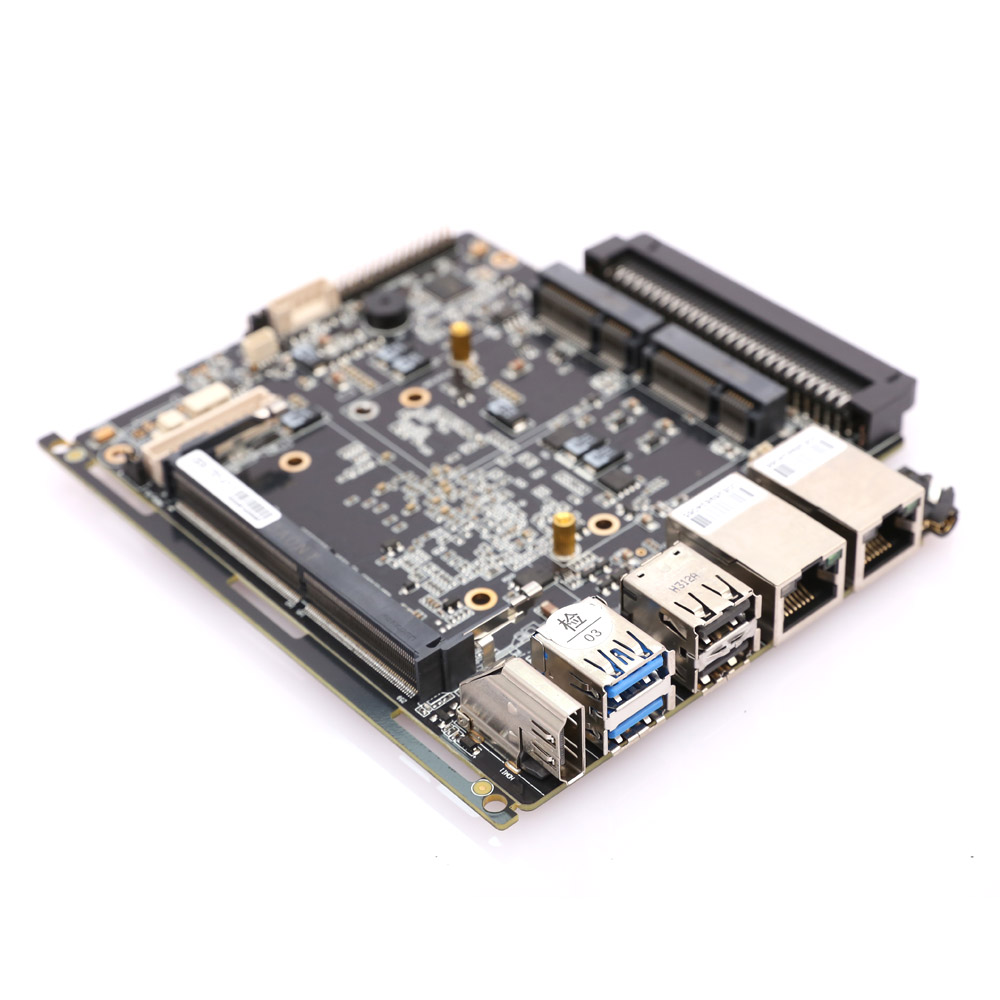

CES-1701 based on CESIPC BlockCore modular technology, it is equipped with an Intel Celeron J6412 processor, combining stable performance with low power consumption. The board integrates 4× USB ports and dual Gigabit Ethernet ports, supports HDMI, VGA, and LVDS multi-display outputs, and comes with I-Door and miniPCIe expansion interfaces, compatible with a variety of functional modules.
Designed to withstand wide-temperature and high-humidity industrial environments, it supports both Windows and Linux systems. Its modular design enables easy installation and maintenance, meeting the requirements of diverse embedded application scenarios.
★ Modular Design — BlockCore technology for flexible multi-scenario combinations
★ High Efficiency & Low Power — Intel Celeron J6412 processor with stable and energy-saving performance
★ Rich Expandability — I-Door and miniPCIe supporting multiple functional modules
★ Multi-Display Output — HDMI, VGA, and LVDS to meet diverse display needs
★ Industrial-Grade Stability — Operates reliably in harsh environments from 0–60℃ and high humidity
★ High-Speed Connectivity — USB 3.0 + USB 2.0, dual Intel Gigabit Ethernet ports
★ Broad System Compatibility — Supports Windows 10/11 and Linux systems
★ Easy Maintenance & Deployment — Modular layout shortens installation and maintenance time
| Item | Specification |
|---|---|
| Processor | Intel Celeron J6412 |
| CPU Architecture | Intel Elkhart Lake |
| Frequency | Base 2.0GHz; Burst 2.6GHz |
| Cores/Threads | 4 cores / 4 threads |
| CPU Power | 10W |
| Memory Type | DDR4 DIMM |
| Max Memory | 16GB |
| Storage Interfaces | 1× mSATA; 1× SATA (optional) |
| Graphics Controller | Integrated Intel UHD Graphics |
| Display Interfaces | 1× HDMI, up to 1920×1080@60Hz; 1× VGA, up to 1920×1080@60Hz; 1× LVDS, up to 1920×1200@60Hz |
| Expansion Slot | 1× miniPCIe slot |
| USB Ports | 1× USB 3.0; 3× USB 2.0 |
| LAN Ports | 2× Intel Gigabit Ethernet (10/100/1000 Mbps) |
| I-Door Interface | 1× I-Door intelligent expansion interface |
| Supported OS | Windows 10 / Windows 11 / Linux |
| Power Type | DC power supply |
| Input Voltage | DC 12V |
| Operating Temperature | 0–60℃ |
| Storage Temperature | -10–70℃ |
| Operating Humidity | 95% RH, non-condensing |
| Dimensions | 119.83 × 109.84 mm |
