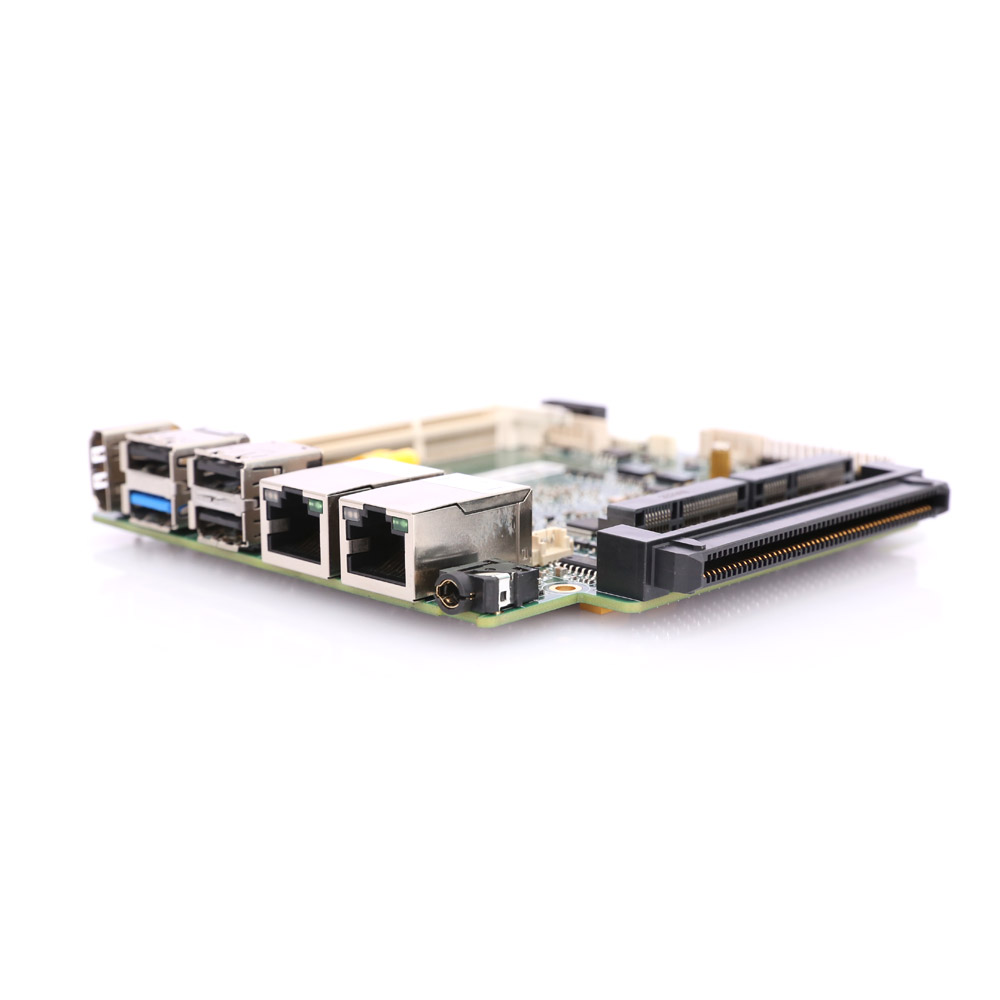

Powered by CESIPC BlockCore modular technology, the CES-1902 integrates 10th Gen Intel® Core™ low-power processors (i3-10110U / i5-10210U / i7-10810U), delivering strong computing performance with energy efficiency.

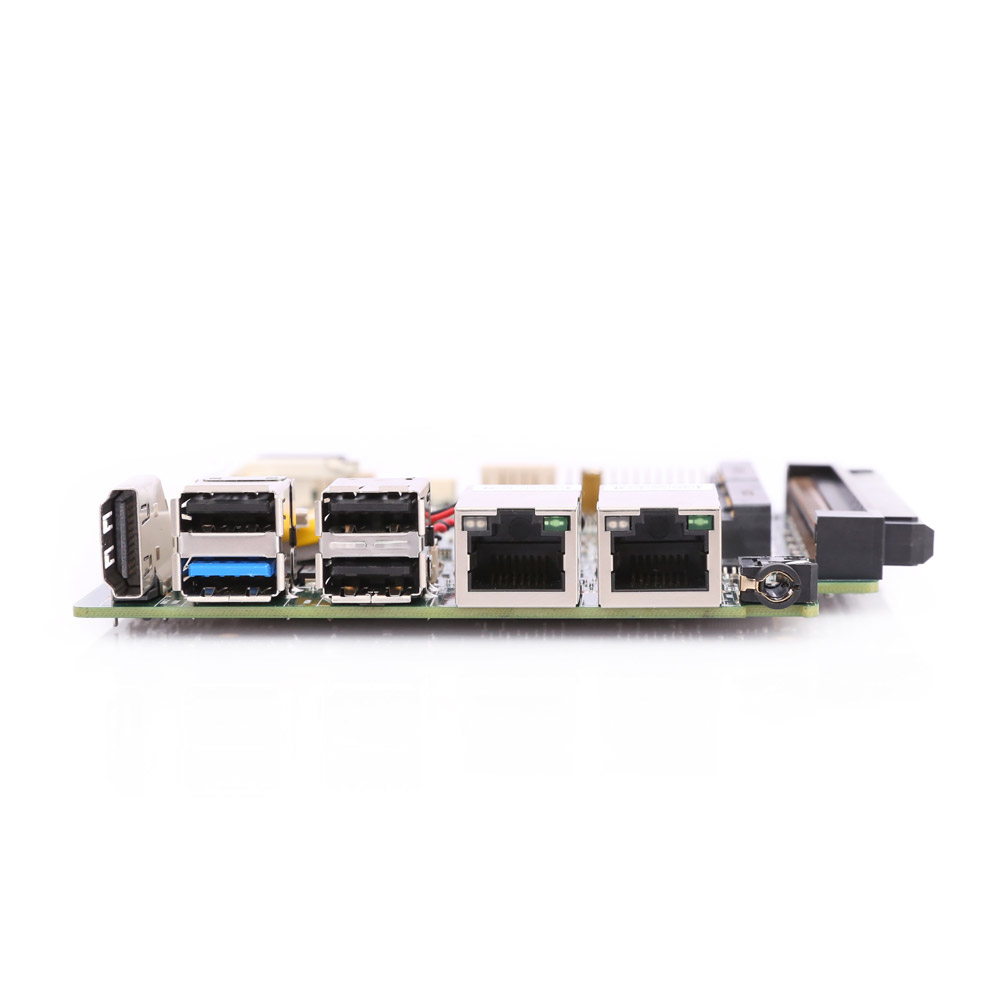

With 4× USB 3.0 ports, dual Gigabit Ethernet, and HDMI/VGA/LVDS multi-display outputs, it offers excellent connectivity and flexibility. Compact modular design ensures easy installation and maintenance in demanding environments.
Ideal for smart retail, industrial automation, transportation, digital signage, and intelligent terminals.
★ Modular Design — BlockCore technology for flexible multi-scenario combinations
★ High Performance & Low Power — 10th Gen Intel® Core™ low-power processors with superior efficiency
★ Rich Expandability — I-Door and miniPCIe supporting multiple functional modules
★ Multi-Display Output — HDMI, VGA, and LVDS to meet diverse display requirements
★ Industrial-Grade Reliability — Operates stably in harsh environments from 0–60℃ with high humidity
★ High-Speed Connectivity — USB 3.0 + USB 2.0, dual Intel Gigabit Ethernet ports
★ Wide System Compatibility — Supports Windows 10 and Linux systems
★ Easy Maintenance & Deployment — Modular layout shortens installation and maintenance time
| Item | Specification |
|---|---|
| Processor | 10th Gen Intel® Core™ low-power (i3-10110U / i5-10210U / i7-10810U) |
| Frequency | 2.1GHz–4.10GHz / 1.70GHz–4.40GHz / 1.10GHz–4.90GHz |
| Cores | 2–6 cores |
| Threads | 4–12 threads |
| CPU Power | 15W |
| Memory Type | DDR4 DIMM |
| Max Memory | 16GB |
| Storage Interfaces | 1× mSATA; 1× SATA (optional) |
| Graphics Controller | Integrated Intel HD Graphics |
| Display Interfaces | 1× HDMI, up to 1920×1080@60Hz; 1× VGA, up to 1920×1080@60Hz; 1× LVDS, up to 1920×1200@60Hz |
| Expansion Slot | 1× miniPCIe slot |
| USB Ports | 4× USB 3.0 |
| LAN Ports | 2× Intel I211 Gigabit Ethernet (10/100/1000 Mbps) |
| I-Door Interface | 1× I-Door intelligent expansion interface |
| Supported OS | Windows 7 / Windows 8 / Windows 10 / Linux |
| Power Type | DC power supply |
| Input Voltage | DC 12V |
| Operating Temp | 0–60℃ |
| Storage Temp | -10–70℃ |
| Operating Humidity | 95% RH, non-condensing |
| Dimensions | 119.83 × 109.84 mm |
