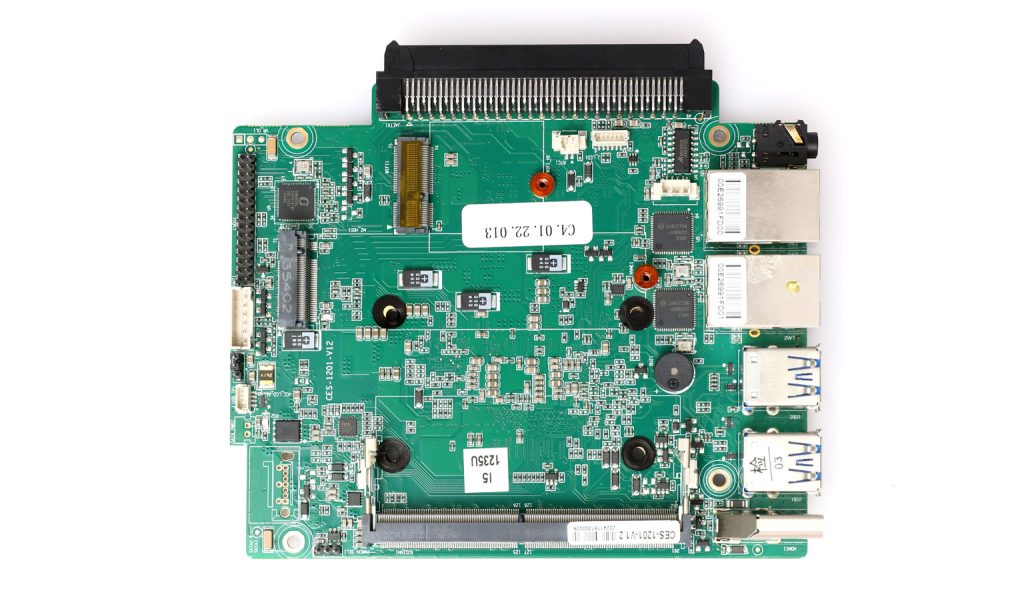

Powered by CESIPC BlockCore modular technology, the CES-1201 adopts 12th Gen Intel® Core™ low-power processors (i3-1215U / i5-1235U / i7-1255U), delivering higher performance with lower power consumption.
★ Modular Design — BlockCore technology for flexible multi-scenario combinations
★ High Performance & Low Power — 12th Gen Intel® Core™ low-power processors with superior efficiency
★ Rich Expandability — I-Door and miniPCIe supporting multiple functional modules
★ Multi-Display Output — HDMI, VGA, and LVDS to meet diverse display requirements
★ Industrial-Grade Reliability — Operates stably in harsh environments from 0–60℃ with high humidity
★ High-Speed Connectivity — USB 3.0 + USB 2.0, dual Intel Gigabit Ethernet ports
★ Wide System Compatibility — Supports Windows 10 and Linux systems
★ Easy Maintenance & Deployment — Modular layout shortens installation and maintenance time
| Item | Specification |
|---|---|
| Processor | 12th Gen Intel® Core™ low-power (i3-1215U / i5-1235U / i7-1255U) |
| Frequency | Base up to 1.2–1.7GHz; Turbo up to 4.4GHz (depending on CPU model) |
| Cores/Threads | 6–10 cores / 8–12 threads |
| CPU Power | 15W |
| Memory Type | DDR4 DIMM |
| Max Memory | 16GB |
| Storage Interfaces | 1× mSATA; 1× SATA (optional) |
| Graphics Controller | Integrated Intel® UHD Graphics |
| Display Interfaces | 1× HDMI, up to 1920×1080@60Hz; 1× VGA, up to 1920×1080@60Hz; 1× LVDS, up to 1920×1200@60Hz |
| Expansion Slot | 1× miniPCIe slot |
| USB Ports | 4× USB 3.0 |
| LAN Ports | 2× Intel Gigabit Ethernet (10/100/1000 Mbps) |
| I-Door Interface | 1× I-Door intelligent expansion interface |
| Supported OS | Windows 10 / Windows 11 / Linux |
| Power Type | DC power supply |
| Input Voltage | DC 12V |
| Operating Temp | 0–60℃ |
| Storage Temp | -10–70℃ |
| Operating Humidity | 95% RH, non-condensing |
| Dimensions | 119.83 × 109.84 mm |
