Background
In chlorine production, where the environment is highly hazardous and corrosive, safety and environmental protection are top priorities. To enhance efficiency and reduce human error, many factories are adopting automated control systems. However, in such extreme conditions, standard equipment often fails—especially the core control unit: the anti-corrosion panel PC.
This is where an Anti-corrosion Panel PC becomes essential. Designed to withstand aggressive chemical environments, it ensures stable operation, reduces downtime, and supports real-time monitoring.
Today, we’ll share a real case from a chlorine plant, showing how an Anti-corrosion Panel PC enabled reliable automation in one of the most challenging industrial settings.
PC Corroded on Site
- Chlorine or other highly corrosive gases and a lot of dust in the factory environment;
- Conventional industrial computer casings are made of sheet metal, aluminum, or stainless steel, which are most susceptible to corrosion;
- Interfaces such as DB9 and RJ45 are prone to oxidation and rust during long-term operation, resulting in poor contact or even failure.
Chlorine production environment
CESIPC Anti-corrosion Panel Pc Two Steps Solution
This two steps solutions are very targeted and practical solution for corrosive environments (such as chlorine environments):
I. Front Panel : Epoxy Resin Frame
The main advantages of epoxy resin include:
- High strength and wear resistance:
After curing, epoxy resin has very high structural stability and mechanical strength, and can withstand large pressure and impact, making it an ideal choice for manufacturing high-performance composite materials and coatings.
- Excellent electrical insulation properties:
Epoxy resin has good electrical insulation properties and is often used for the packaging of electronic components and the insulation of electrical equipment.
- Good chemical stability:
Cured epoxy resin is resistant to a wide range of chemicals, including acids, bases and solvents.
- Degradability:
It has good degradability and can be divided in the natural environment to reduce environmental pollution.
1, The front bezel includes corners, mounting holes, and screen cut-outs, which require precise spraying techniques to avoid coating intrusion;
2, Coating thickness is controlled within 100μm–150μm, ensuring dimensional tolerance and seamless panel assembly;
II. Anti-corrosion Panel Pc Back Shell：2 options available
- Option 1. Three-proof treatment (waterproof, dustproof, and anti-corrosion)：
Protect the motherboard and interfaces and extend the life of the equipment;
- Option 2. Plastic Aviation Connectors for I/O Ports：
Industrial-grade connector with stronger sealing and more corrosion resistance, suitable for long-term use in harsh environments.
This product has been used in Mexican food factory
CESIPC Recommendation
- resistant to moisture
- prevent the interface from rusting
- waterproof, and more cost-effective
- we are currently using them in the offices of Mexican food processing plants,
So I recommend option 2.

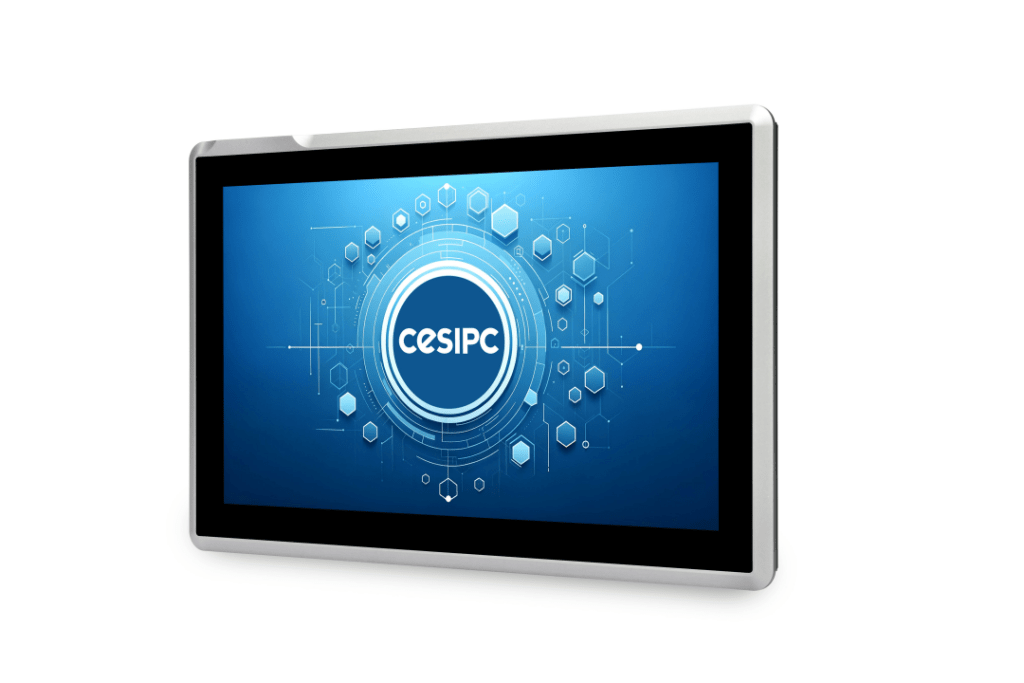

Recommended Model for this project-Industrial-grade Anti-corrosion Panel Pc
Model: EPC-W15X2A
Brand: CESIPC
| Item | Specification |
| Panel | 15.6 inch |
| Resolution | 1920 x 1080 |
| Touch | Pcap Touch, 1-10 Touch Points |
| CPU | Intel Celeron/i3/i5/i7 |
| Memory | 4GB DDR3L |
| Storage | 128GB SSD |
| USB interface | 3 × USB |
| HDMI | 1 |
| Ethernet | 1 x Intel I210 |
| Power | 12V DC (9~36Voptional） |
| Working temperature | 0°C to +60°C |
| Size | Compact design |
Anti-corrosion Panel Pc-EPC-W15X2A-Key Advantages
- Industrial-grade motherboard design:
Ensures long-term stability with reinforced PCB and components
- High temperature support:
Operates stably up to 70°C under full load
- Rich I/O for environmental sensors:
RS485 compatible with common monitoring protocols
- Compact and integrate:
Easily deployed in cabinets or enclosures
For challenging industrial environments like chlorine production facilities, we offer fully customized anti-corrosion Panel PC solutions. Contact us to discuss a solution tailored to your requirements.
