8-Inch Fanless J1900 Industrial Panel PC UTC-S0862A
Product Features
- Aluminum die-casting chassis, fanless design
- Wireless Design
- 8 inch LED TFT LCD, capacitive touch
- Intel Celeron J1900 2.0-2.42G CPU
- 3*COM, 2*LAN, 5*USB2.0, 1*USB3.0
- AT & ATX Model
- Front Panel IP65 Level
- Download Specification PFD
Product Introduction
UTC-S0862A is an intelligent, fanless panel PC, 8″ Panel PC equipped with an Intel® Celeron J1900 processor. Meeting the demands of harsh environments, in addition, the dual GbE LAN, 3 x serial ports, 6 x USB ports, make device connection and integration easy.
Product Specifications
| CPU | Intel Baytrail-D Celeron J1900, 2.0~2.42GHz, 4cores, 4threads, 2M cache, 22nm,TDP 10W |
| Cooling System | Fanless |
| Memory | Single Socket, 4GB-8GB DDR3L |
| Storage | mSATA SSD Full Size+SATS 2.5″SSD |
| I/O ports | 5xUSB2.0+1xUSB3.0, Type-A |
| COM: 3xRS232, DB9, 2*RS485/ 2*RS422 optional | |
| Dual Display: 1xHDMI (1920*1200 @30Hz)1*VGA (1920*1200 @30Hz) | |
| Audio: 1×Mic-in, 1x Line-out | |
| WIFI: 802.11a/g/n, 2×2 Antenna, 2.4/5 GHz, 300 Mbps Max Speed | |
| Network(LAN) | 2x Intel I211 10/100/1000Mbps Ethernet |
| Input Voltage | 12V DC (3 pin Aviation Connector) , optional 9V-36V DC |
| Display Type: | 8 inch TFT LED Panel ( LED Backlight) |
| Max. Resolution: | 1024×768 / 4:3 |
| Luminance(cd/㎡) | 300nits |
| Touch Type | Projected Capacitive Touch |
| OS Support | Microsoft Windows 7/ Windows 10/Windows 11/ Linux |
| Operating Temperature | 0℃～50℃(14~ 140 °F)(extend temperature optional) |
| Storage Temperature | -10℃～60℃(-4 ~ 158 °F) |
| Front Panel Protection | IP65 compliant |
| Dimensions | 219.2×177.2×64.8mm cutout size 208.2 x166.2 mm |
| Weight | N.W. 2.3KG |
| Color | Black |
| Material | High Strength Aluminum Alloy |
| Certification | CE / RoHS |
| Custom Service | Custom BIOS, System Encryption, Custom LOGO |

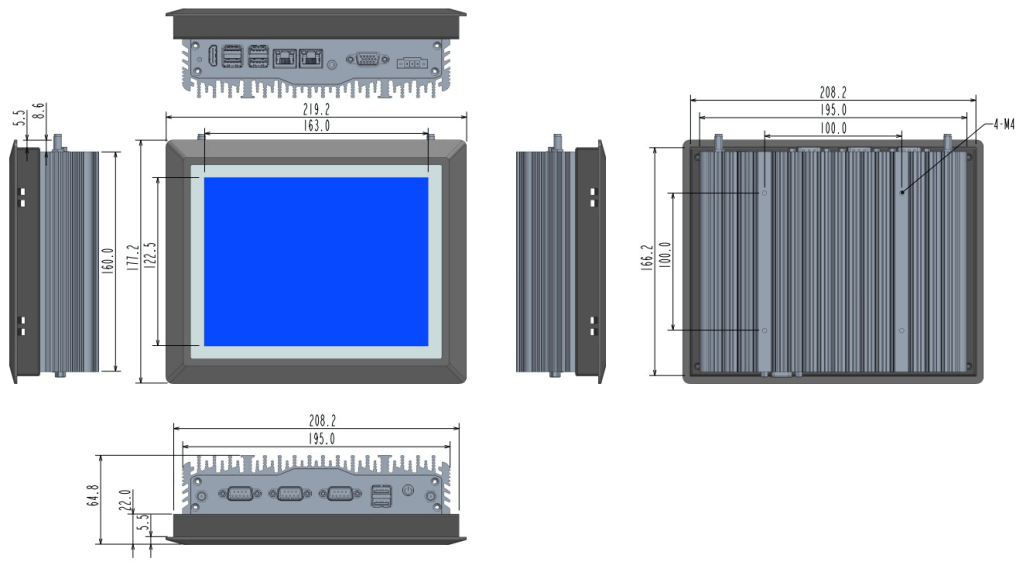

Product Dimensional Diagram
