The UPC-206F LEGO industrial PC exemplifies fanless embedded design with CESIPC’s LEGO MODE technology. It offers 4G/5G LTE (SIM/TF) ports, featuring Celeron processor for exceptional performance. It provides robust functionality and high protection standards, making it ideal for demanding industrial environments.
Introduction
- Intel® Core™ i7/i5/i3 processors, compatible from Celeron® to 12th Gen Intel® Core
- Fanless
- 4G/5G LTE (SIM/TF)
- Dual Intel® I210 Gigabit Ethernet.
- I/O: USB 2.0 ×3, USB 3.0 ×1, Audio ×1, Mic ×1, RS-232 ×3, HDMI, VGA.
- 9–36V DC wide-range power input.
- Expansion: dual M.2 2280 NVMe, M.2 2230 Wi-Fi.
- TPM 2.0 hardware security support.
- CESIPC LEGO MODE modular design.
- CESIPC SafeCore™ power-loss protection.
- Auto power-on after power recovery.
- Industrial-grade 6061 aluminum alloy enclosure.
► Specifications
System Core
| CPU | Intel® Celeron® Processor J1900 2.0~2.42GHz Intel® Celeron® Processor J6412 2.0~2.6GHz |
| Memory | 4~8GB DDR3L /4~32GB DDR4L |
| Storage | 1 x mSATA SSD |
| Cooling | Fan-less |
| OS | Windows 10/11/ Linux Ubuntu |
I/O Ports
| USB2.0 | 5×USB2.0/ 2×USB2.0 |
| USB3.0 | 1×USB3.0/ 4×USB3.0 |
| COM | 2×RS232+1×RS485 DB9 |
| Display | 1×HDMI+1×VGA Dual Display |
| Audio | 1×Audio |
| Expansion | 1×Mini PCIe Socket/ 1x SIM Card Slot |
| Ethernet | 2×10M/100M/1000M Intel I210 LAN |
Wireless Communication
| Wireless Network | 4G Full Network Compatibility （Optional） |
| Wi-Fi | Wi-Fi/ Blue tooth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Environmental
| Operating Temperature | 0~50℃ (-40~70℃Optional) |
| Storage Temperature | -10~60℃ |
| Humidity | 10%~90% , non-condensing |
Mechanical
| Dimension | 195 (W) × 160 (D) × 42.8 (H) mm |
| Weight | 1.7 KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |

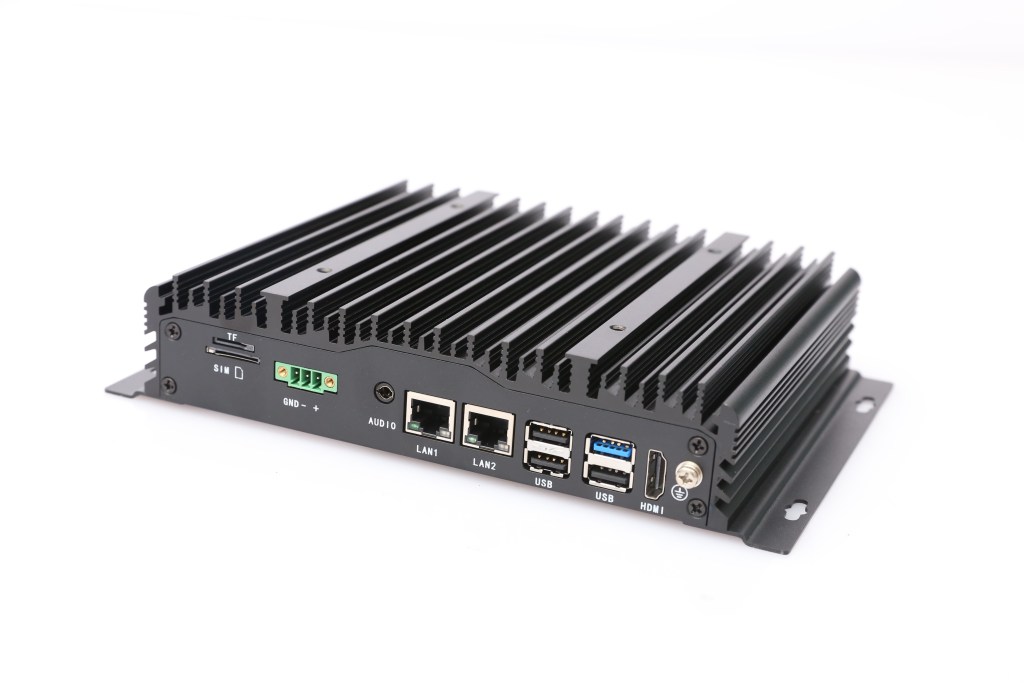

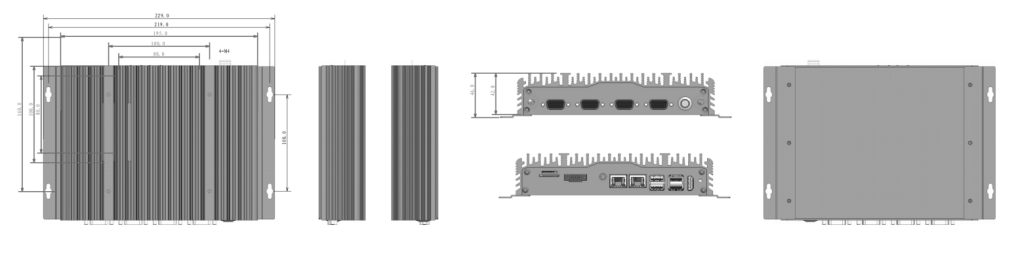

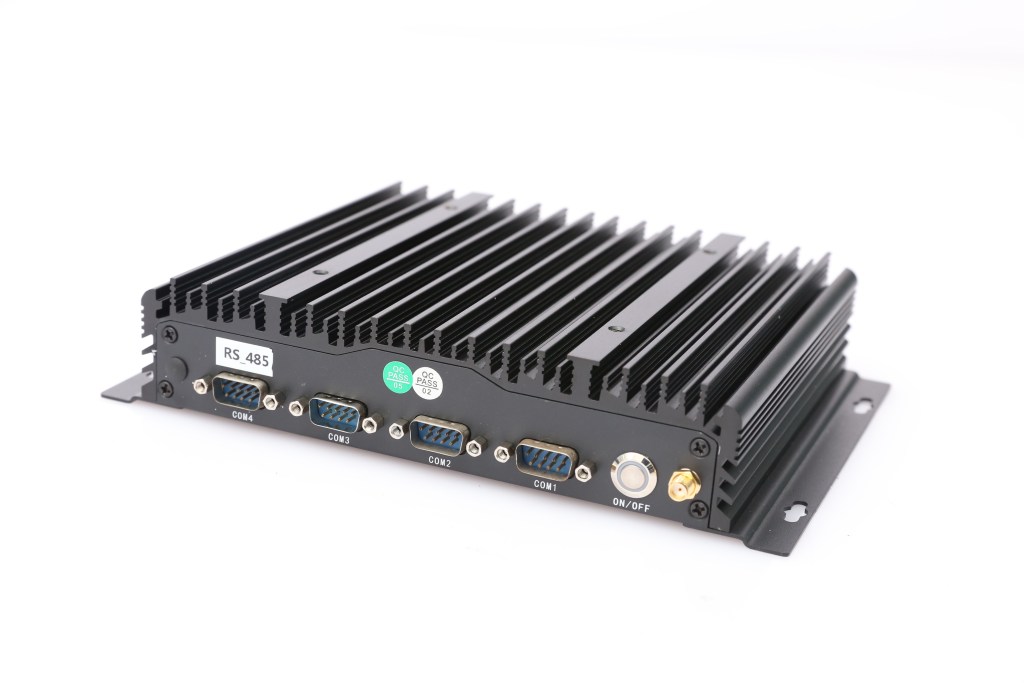

►Product images & sizes

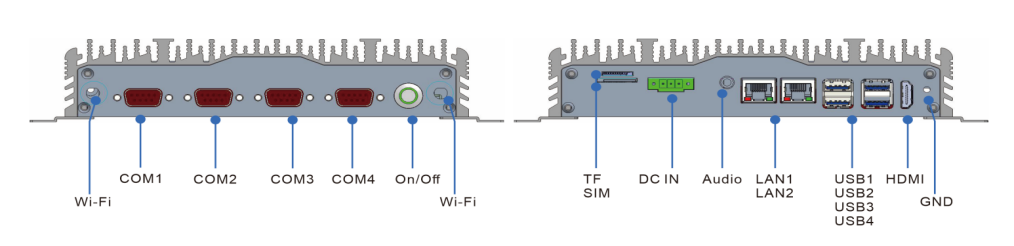

► I/O
