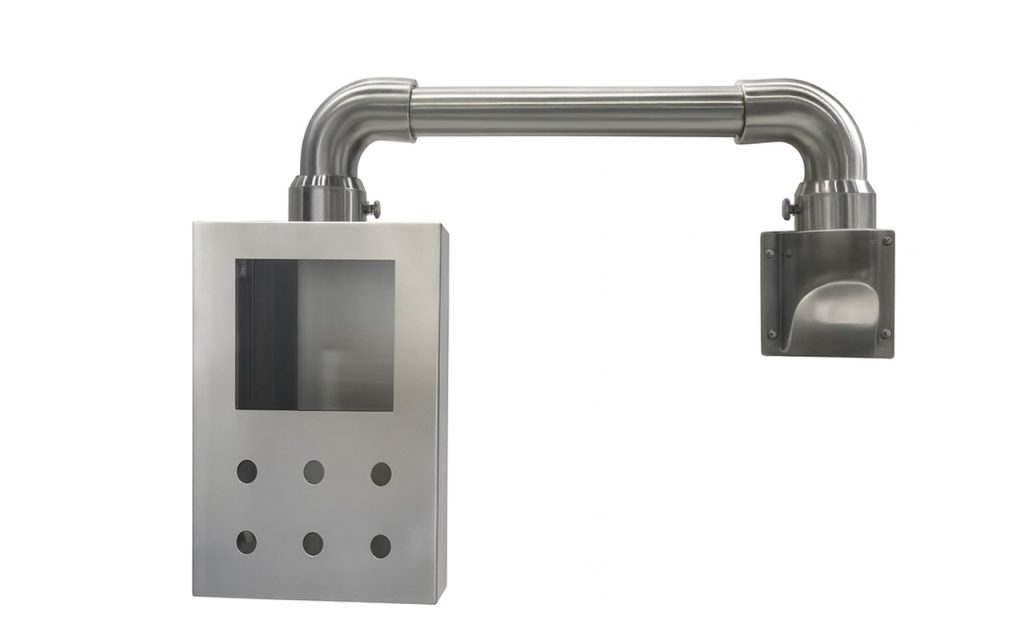

Professional Mounting Solution for Food- and Pharma-Grade Waterproof Environments

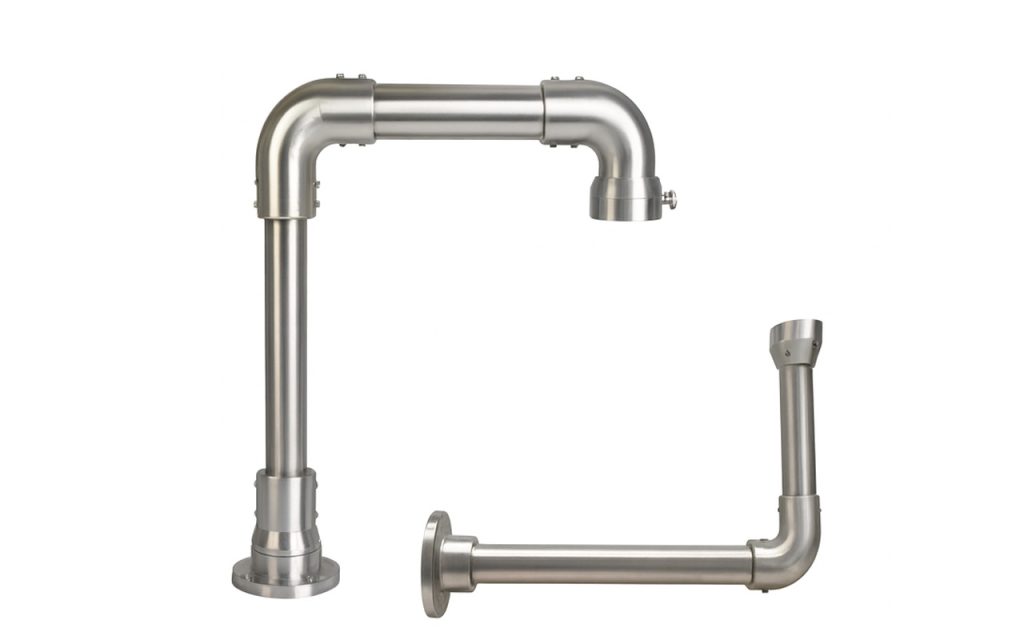

This 304 stainless steel cantilever arm base supports Ø 48 mm tubing and is compatible with mainstream cantilever systems such as Rittal and Role. Made of food-grade SUS304 stainless steel, it is corrosion-resistant and easy to clean — suitable for harsh environments such as food processing, pharmaceuticals, and cleanrooms. The structure is sturdy, and when paired with IP69K-rated devices it provides an industrial-grade mounting solution that can withstand high-pressure hot-water washdowns, leaving no hygiene dead-angles — ideal for both new production lines and retrofit projects.

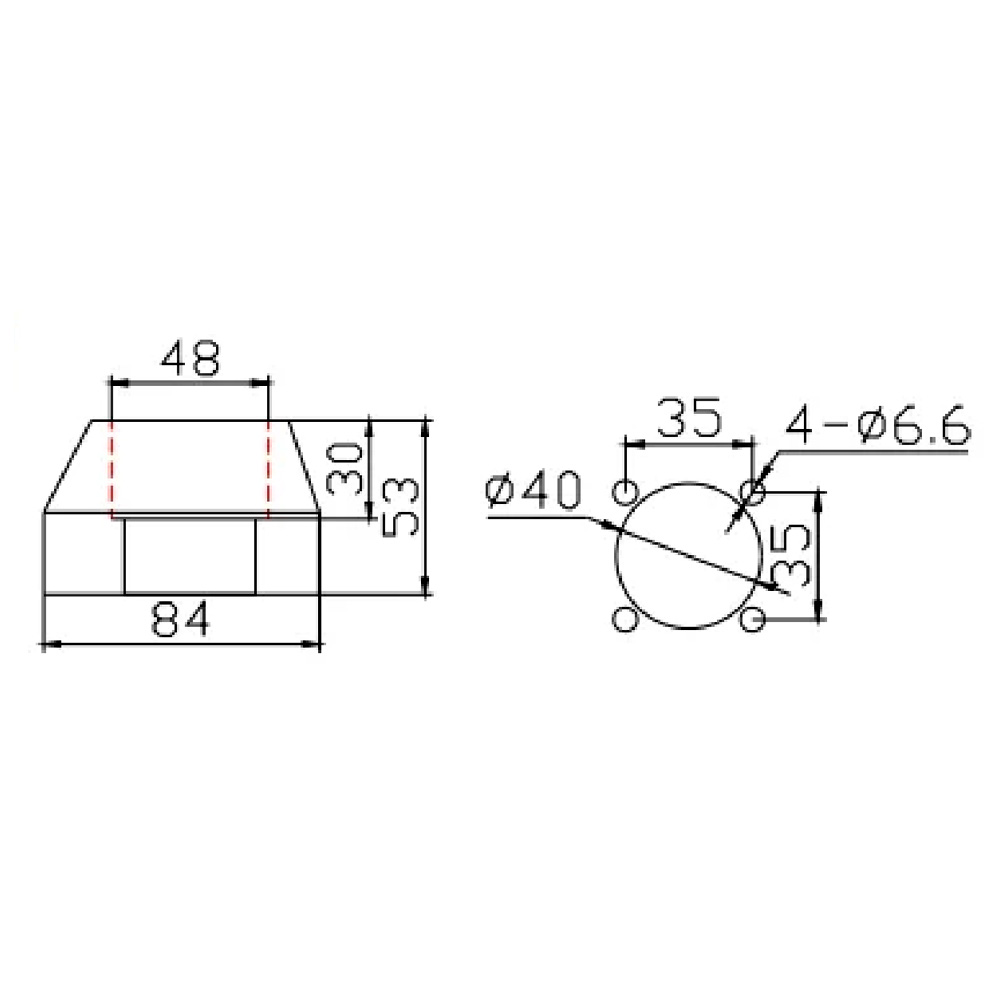

Enclosure Connector
- Part number: 304.290.4881
- Weight: 1.1 kg
- Material: 304 stainless steel
- Feature: Horizontal rotation 0–320°
90° Enclosure Connector
Feature: Horizontal rotation 0–320°
Part number: 304.380.4850
Weight: 2.3 kg
Material: 304 stainless steel
Horizontal Wall Mount Plate
Feature: Horizontal rotation 0–320°
Part number: 304.550.4860
Weight: 3.2 kg
Material: 304 stainless steel

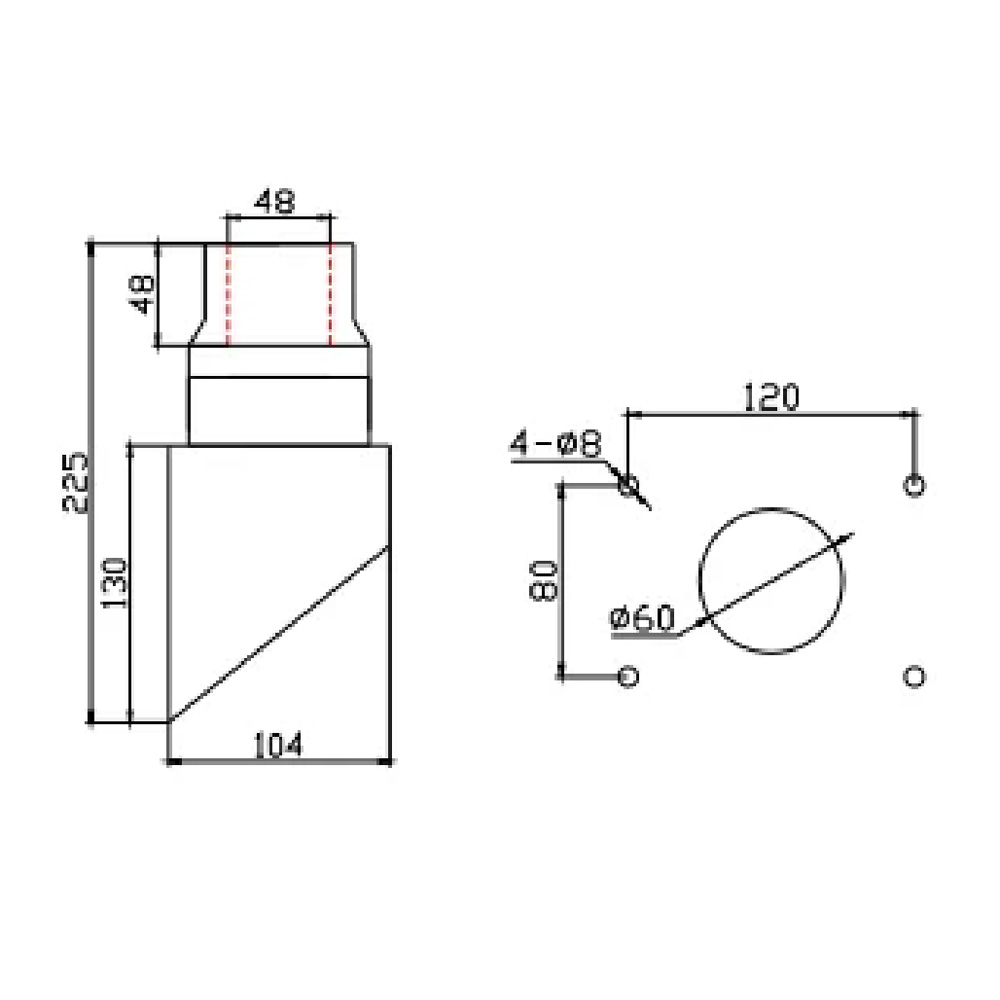

Vertical Wall Mount Plate
Feature: Horizontal rotation 0–320°
Part number: 304.480.4870
Weight: 3.0 kg
Material: 304 stainless steel
Intermediate Connector
- Part number: 304.550.4830
- Weight: 3.1 kg
- Material: 304 stainless steel
- Feature: Horizontal rotation 0–320°

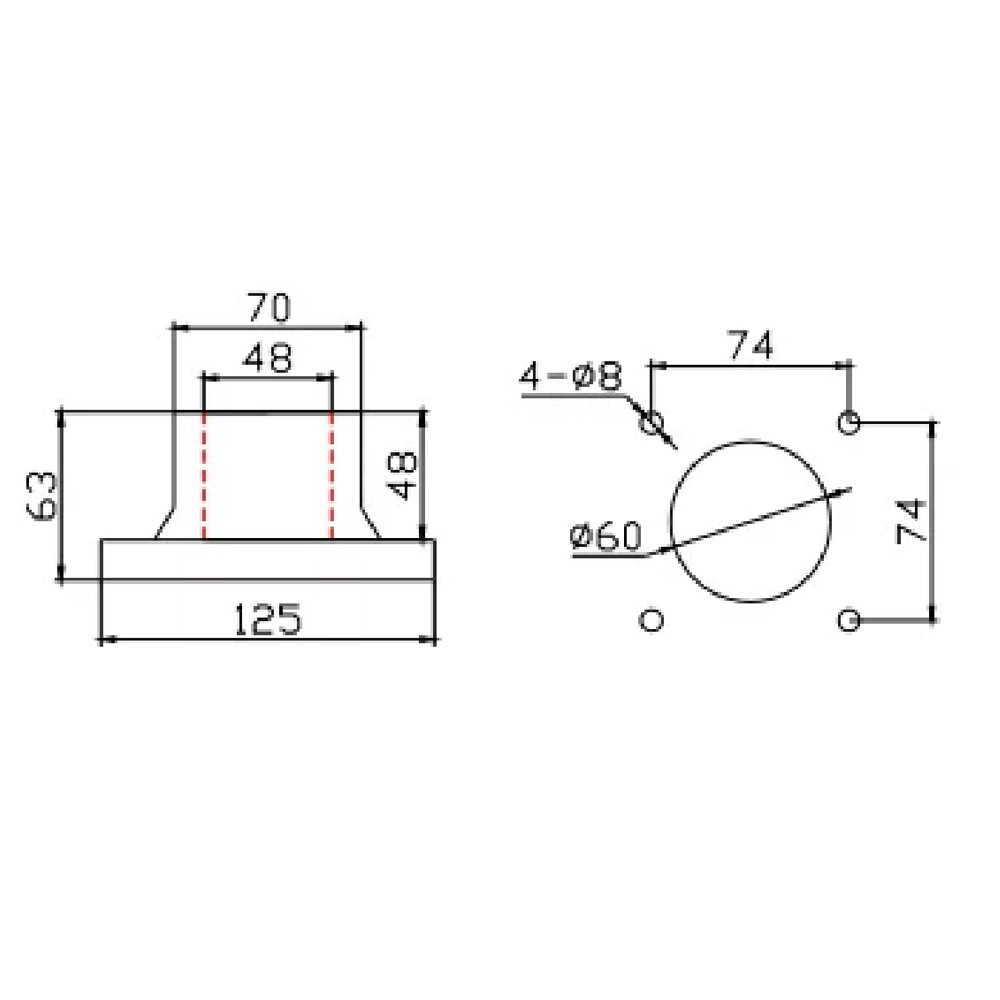

Fixed Base Plate
- Part number: 304.290.4840
- Weight: 2.1 kg
- Material: 304 stainless steel
- Feature: Horizontal rotation 0–320°

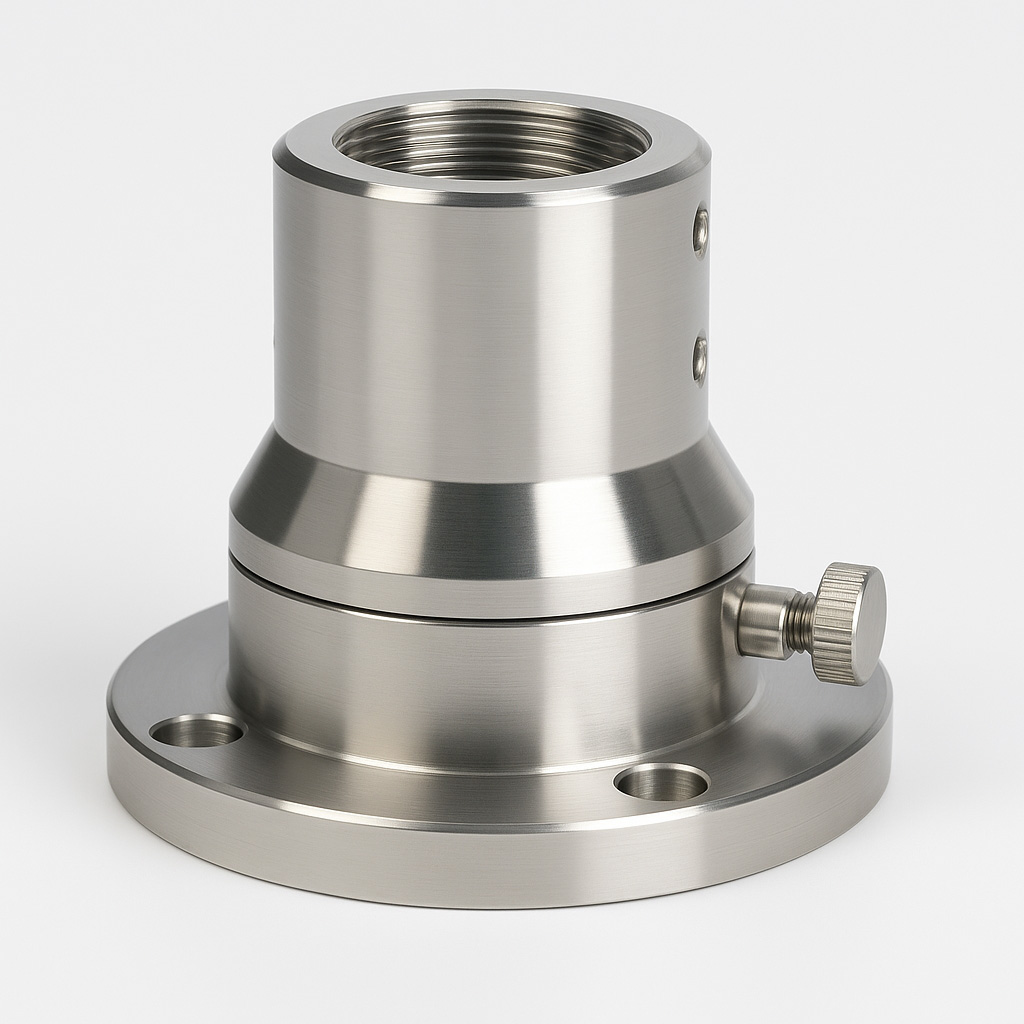

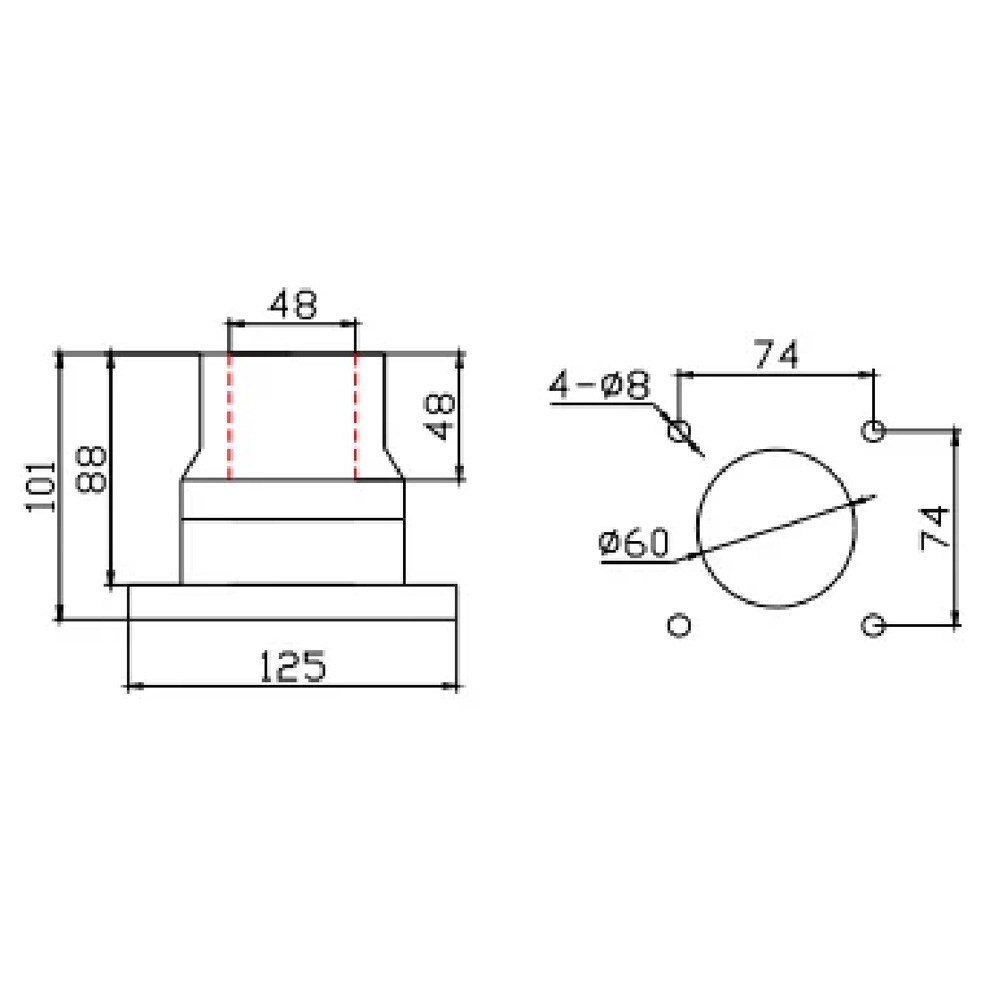

Rotating Base Plate
- Part number: 304.380.4880
- Weight: 3.1 kg
- Material: 304 stainless steel
- Feature: Horizontal rotation 0–320°
Ø 48 mm Stainless Steel Tube
- Part number: 304.120.4800
- Material: 304 stainless steel
- Note: Customizable to customer-required length

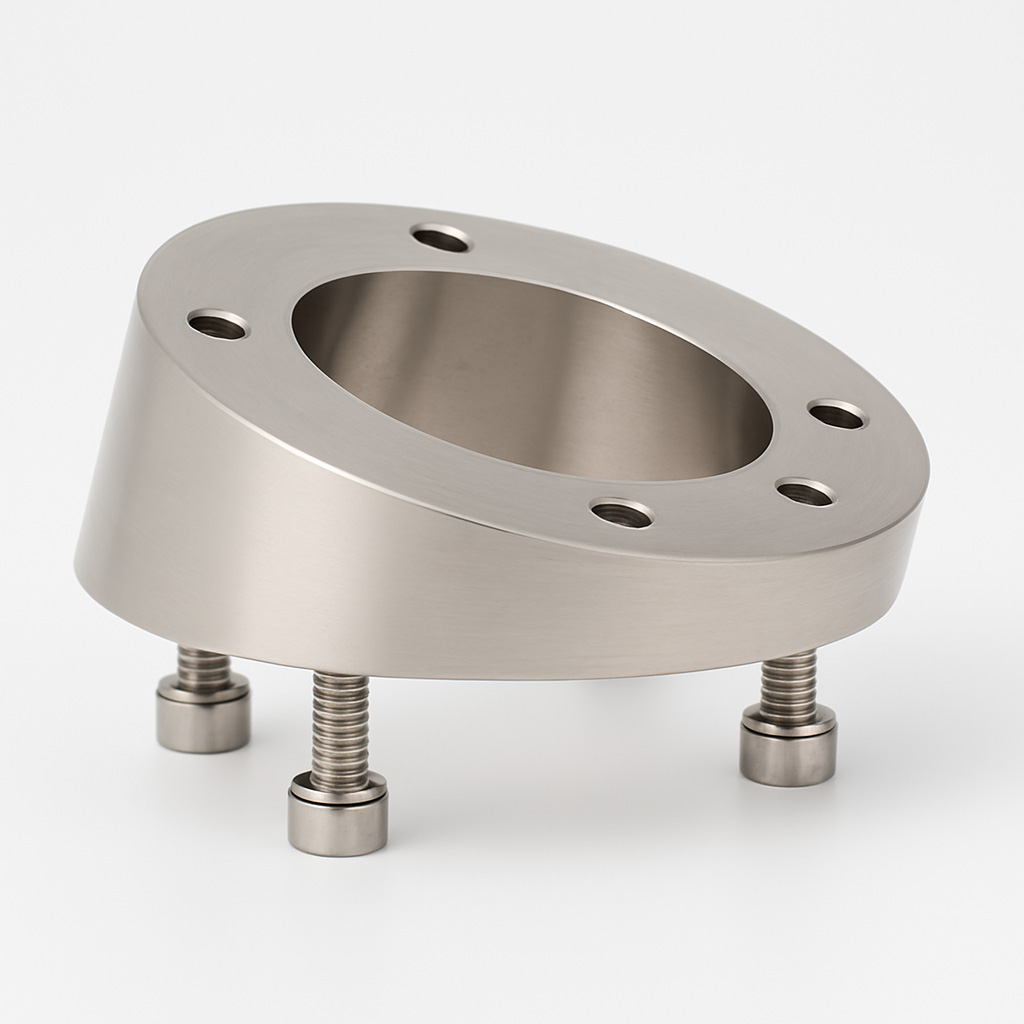

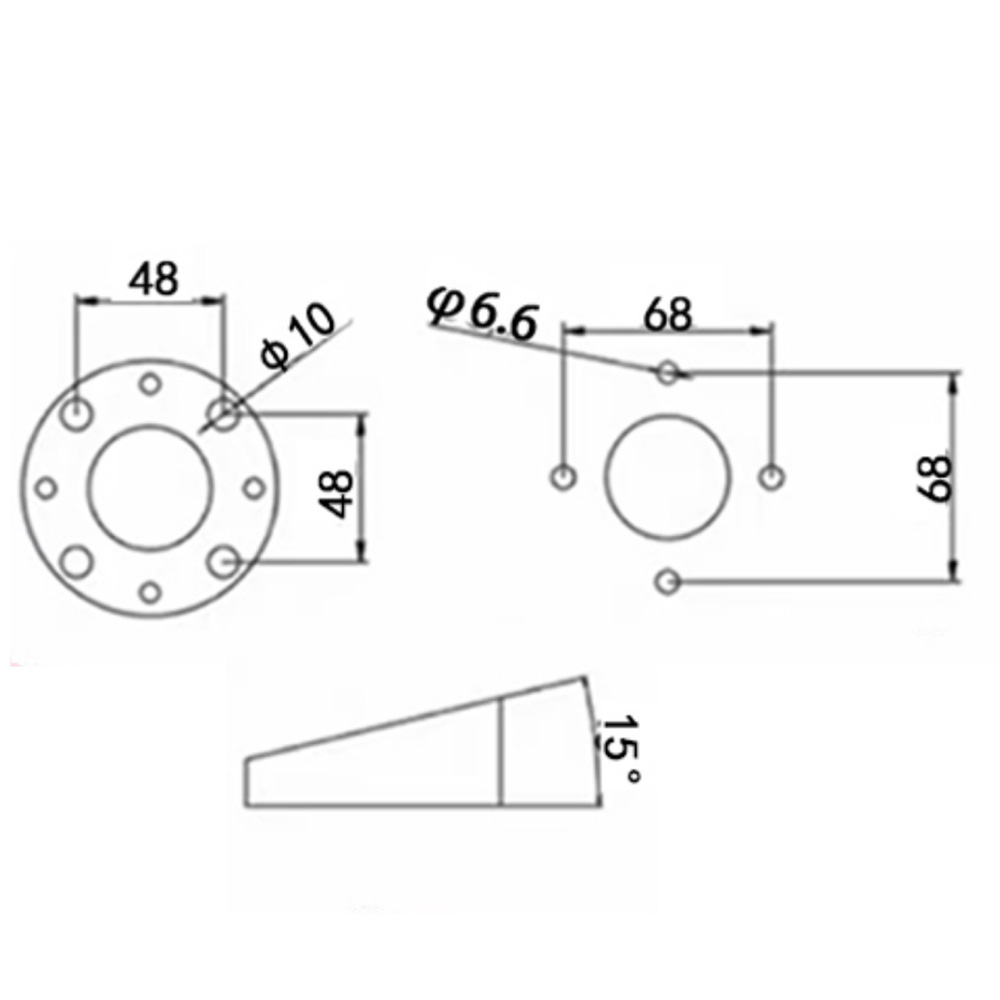

Stainless Steel 15° Inclined Adapter
- Part number: 304.310.4815
- Material: 304 stainless steel
- Note: Non-rotatable
