The KLD-0762B is a 7-inch industrial panel PC powered by the Intel® Celeron® J1900 processor. It provides stable performance with multiple I/O interfaces, an IP65-rated front panel, and a reinforced anodized chassis, offering corrosion resistance and wide temperature tolerance. Designed for continuous operation in harsh industrial environments, it is widely used in machine vision, robotic arm control, AGV vehicles, laser applications, rail transportation, seed and pharmaceutical counting industry and ERP/MES/WMS systems.
Introduction
★ Intel® Celeron® Processor J1900 2.0~2.42GHz
★ 7-inch Capacitive Touch Screen Design
★ Windows 7/ Windows 11
★ Phoenix Connector
★ Board-to-board Design for Stable Performance
► Specifications
System Core
| CPU | Intel® Celeron® Processor J1900 2.0~2.42GHz |
| Memory | 4~8GB DDR3L |
| Storage | SSD |
| Cooling | Fan-less |
| OS | Windows 10/11/ Linux Ubuntu |

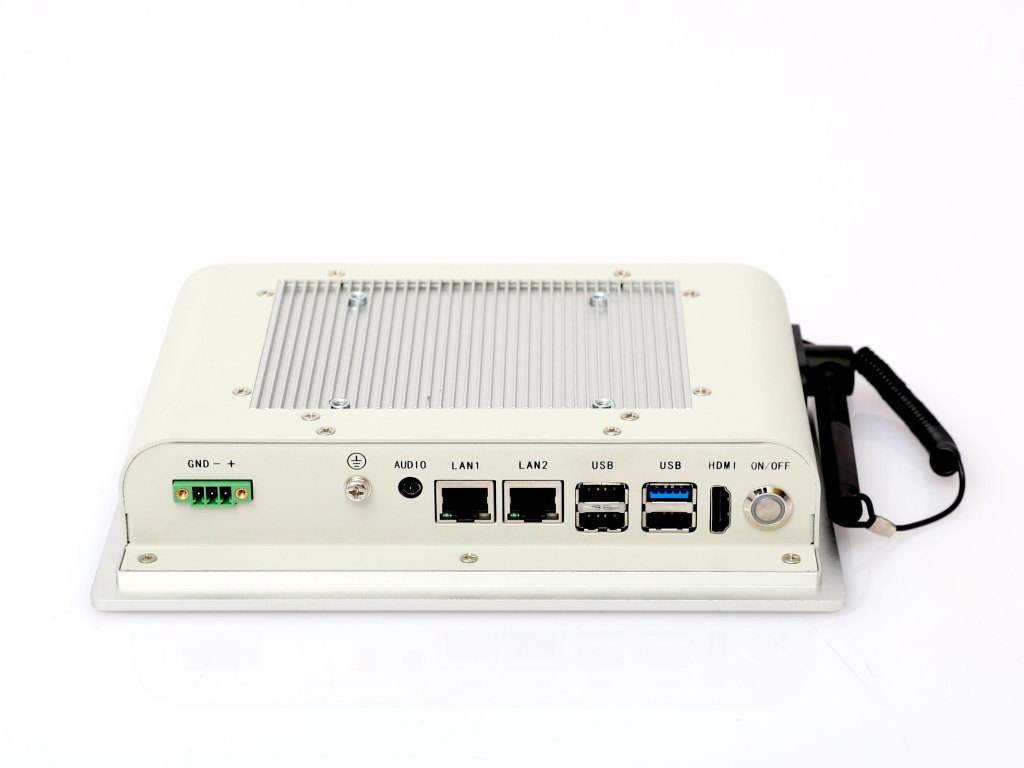

I/O Ports
| USB2.0 | 1×USB3.0+3×USB2.0 |
| Audio | 1×Audio |
| Display | 1x HDMI |
| Expansion | 1×Mini PCIe Socket |
| Ethernet | 2×10M/100M/1000M Intel I210 LAN |
LCD Display
| Panel Size | 7inch |
| Max. Resolution | 1024×600 16:9 |
| Luminance(cd/㎡) | 350cd/㎡ |
| Contrast | 450:1 |
| Backlight | More than 50000H |
Panel Screen
| Touch Panel | Multi-touch Projected Capacitive Touch Screen |
| Transmittance | 85% |
| Controller | USB |
Wireless Communication
| WirelessNetworkin | 4G Full Network Compatibility （Optional） |
| Wi-Fi | Wi-Fi/ Bruteeth |
Power Supply
| DC Input | 1×3-pin Pluggable Terminal Block for 12V DC, 9-36V optional |
| Booting | AT / ATX |
Operating System
| Windows | Windows 10 Note: Celeron J1900 can support Windows 7 |
| Linux | Ubuntu 16.04 / 18.04 / 20.04 / 22.04 |
Mechanical
| Dimension | 222.6(W)×154.0(D)×43.4(H)mm |
| Cutout Dimensions | 75.0×75.0mm |
| Weight | 2.3KG |
| Material | High-Strength Aluminum Alloy |
| Mounting | Wall-mount/VESA Mount |
Environmental
| Operating Temperature | 0~50℃ (-40~70℃Optional) |
| Storage Temperature | -10~60℃ |
| Protection | Front Panel IP65 |
Certifications & Services
| Certs | CE / FCC / BIS, according to EN 55032 & EN 55035 |
| ODM | BIOS / Boot on LOGO / OEM |

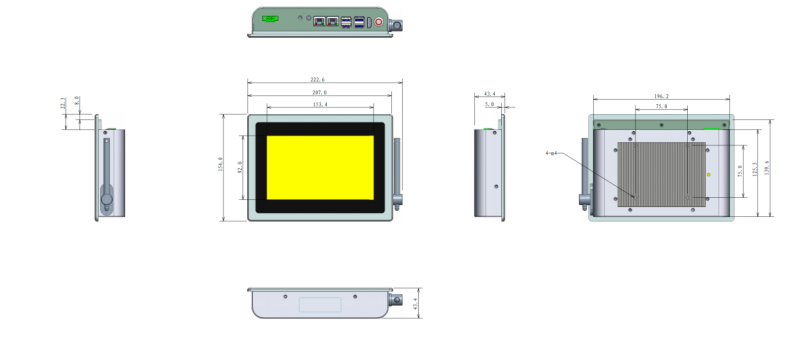

►Dimensions
