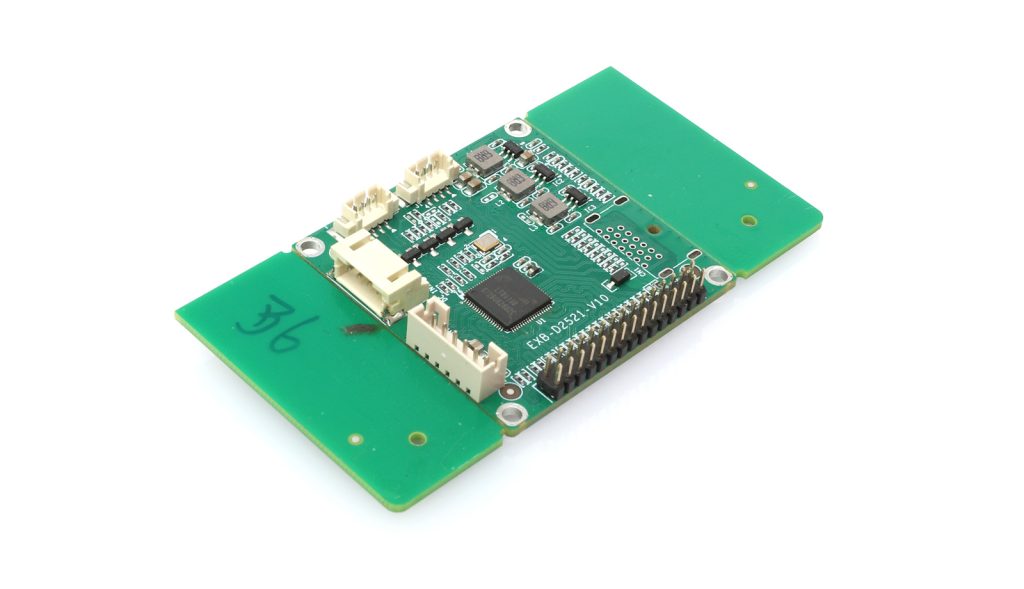

The EXB-D2521 expansion board features a modular design that converts HDMI signals to LVDS output, enabling seamless connection between display panels and embedded systems. It delivers stable signal transmission, high-definition display performance, and reliable operation, making it ideal for industrial displays, HMI terminals, and embedded visualization applications.
★ Modular Design — LEGO MODE for flexible multi-scenario use
★ HDMI to LVDS
★ Specification Download
| Parameter | Description |
| Input Interface | HDMI to LVDS |
| Profile | L300 |
| Reserved functions | LVDS2,LVDS1,USB1,USB3,INVT1,INVT2 |
| COB matching | COB-D21C7-V10 |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 164 x 140.5mm |
| Mounting Method | Screw Holes |
IPC with EXB-D2521
12th Gen Intel® Core™ Processor
14xUSB / 2xLAN
