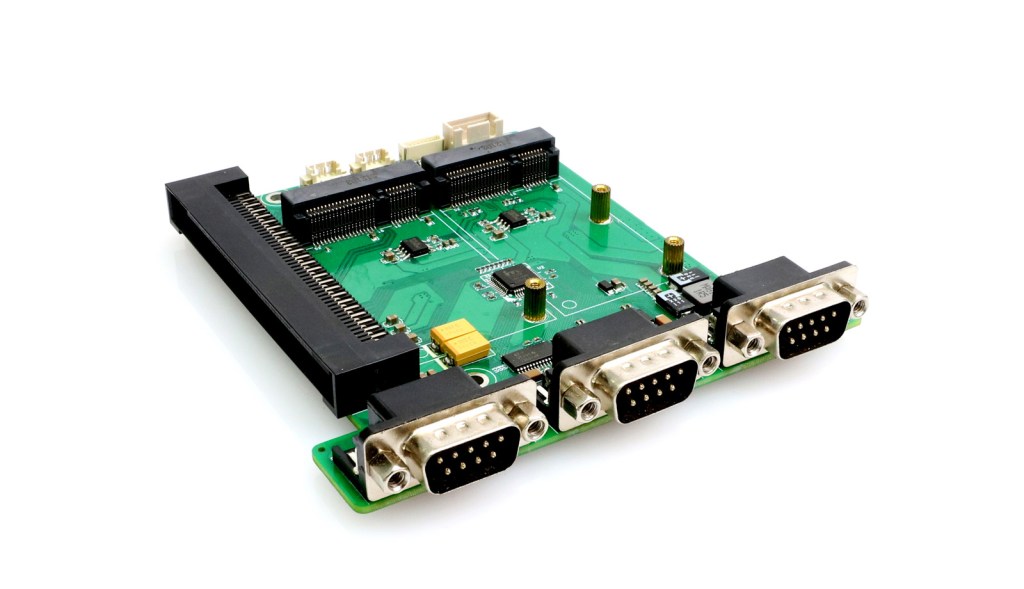

The EXB-D2137 i-Function Board adopts a BlockCore modular design and integrates three RS232 interfaces, enabling stable communication with multiple devices. With a compact size of 100×106 mm and convenient through-hole mounting, it operates reliably in a wide temperature range from -10 °C to +60 °C. Its robust performance makes it suitable for various industrial applications such as intelligent manufacturing, data acquisition, and security monitoring.
★ Modular Design — BlockCore for flexible multi-scenario use
★ 3x RS232
★ 2 USB expansions
★ Specification Download
| Parameter | Description |
| Ports | COM Ports: 3×COM |
| Applicable Structure | SPC Series |
| Compatible Motherboards | / |
| Reserved function | 2x USB |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 106 x 100mm |
| Mounting Method | Screw Holes |

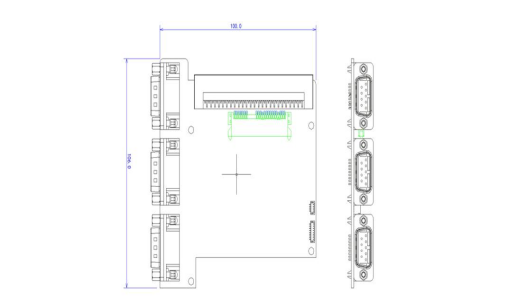

EXB-D2137 Dimensions
