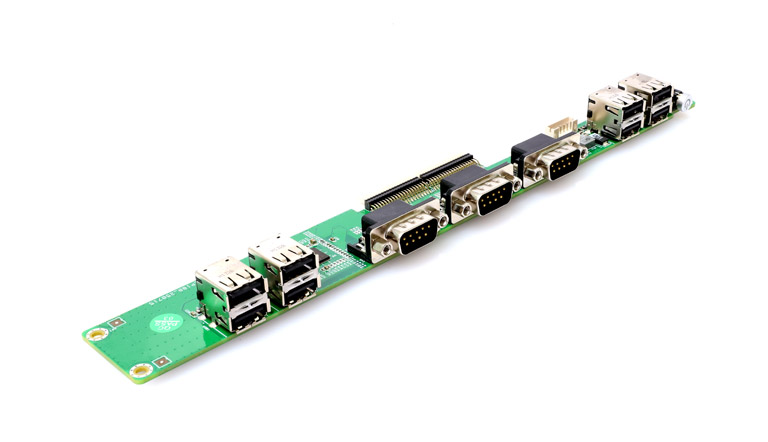

The COB-D2575 expansion board adopts a modular design, integrating 3 RS-232 ports (with 2 switchable to RS-485) and 8 USB interfaces to support diverse industrial connectivity needs. It offers high stability, strong data transmission capability, and flexible expansion, making it ideal for industrial control, machine vision, data acquisition, and embedded system applications.
★ Modular Design — LEGO MODE for flexible multi-scenario use
★ 3xRS232 (2xRS485)，8xUSB
★ Specification Download
| Parameter | Description |
| Input Interface | 3xRS232 (2xRS485) serial ports, DB9 interface，8xUSB 2.0 |
| Profile | L300 |
| Reserved functions | LVDS2,LVDS1,USB1,USB3,INVT1,INVT2 |
| COB matching | COB-D21C7-V10 |
| Power Supply | 5V DC from Motherboard Pin |
| Power Consumption | < 1W (typical) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Dimensions | 164 x 140.5mm |
| Mounting Method | Screw Holes |
