EA-W12-N500 JETSON Orin NX 16GB

12.5-inch Integrated Industrial Vision and Human-Machine Interaction Platform Based on Jetson Orin™

Features

Supports Jetson Orin™ NX / Nano AI modules in multiple specifications, with up to 157 TOPS of edge inference capability
Equipped with an NVIDIA Ampere architecture GPU, supporting deep learning inference and video analysis applications
Embedded 8-core Arm Cortex-A78AEv8.2 64-bit CPU, meeting high-performance and stringent safety requirements
Supports NVIDIA JetPack SDK, CUDA, TensorRT, cuDNN, and a wide range of AI and vision algorithm ecosystems, making it easy to deploy deep learning, vision inference, and robotic applications

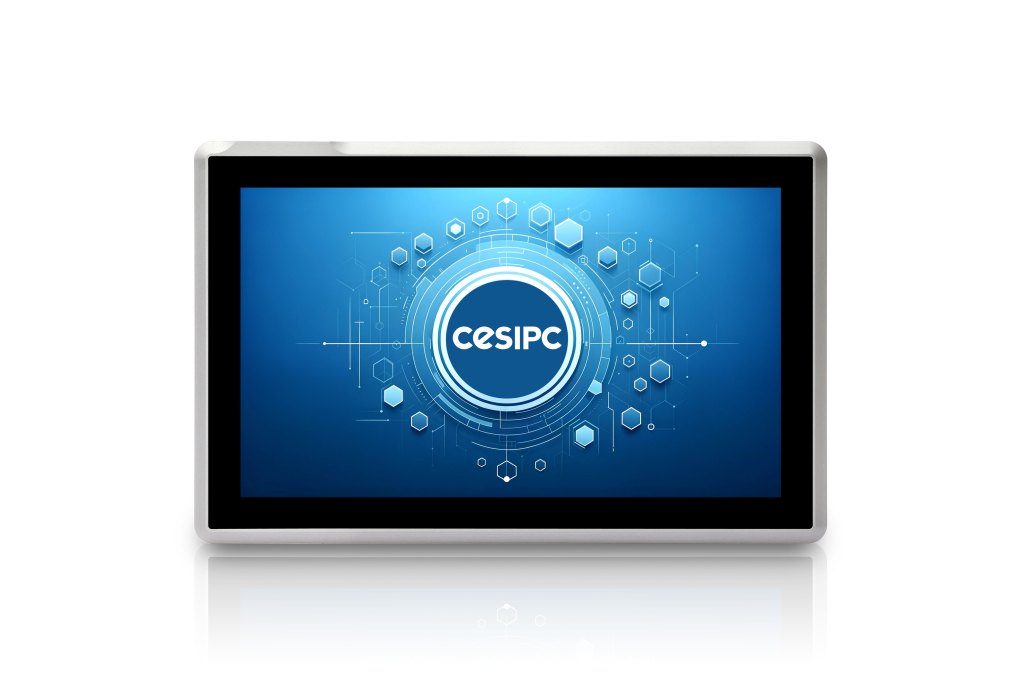

Supports a 12.5-inch industrial-grade touch display, suitable for edge AI visualization and human-machine interaction scenarios;
Uses 16:9 TFT LCD display technology with a resolution of 1920 × 1080 (FHD Full HD), providing clear and detailed visuals;
Utilizes P-CAP (Projected Capacitive) 10-point touch technology, with sensitive touch response and precise positioning.
Equipped with 4 PoE Gigabit Ethernet ports for integrated power and data for visual terminals
Supports high-speed buses such as PCIe and CSI to meet vision and data acquisition expansion needs

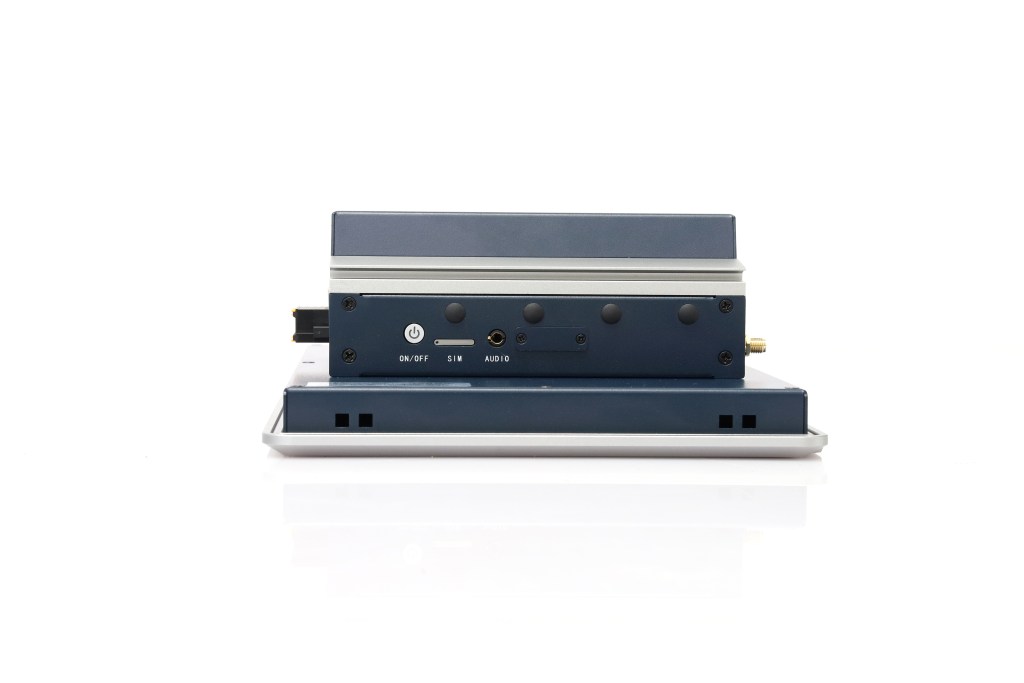

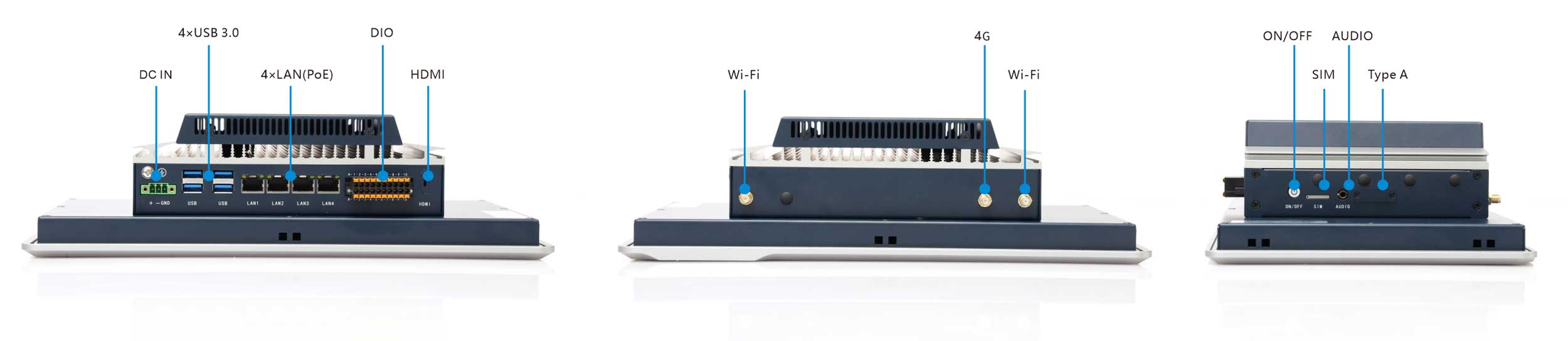

Comprehensive industrial interface system: 4 USB 3.0 ports, serial ports, CAN, and GPIO, easily adaptable to various field devices
Wide voltage input of 9~36V DC, suitable for complex power supply environments in the field
Features hardware-level power monitoring with auto-recovery mechanism, automatically resuming operation after power-on, designed for unmanned industrial systems
Equipped with CESIPC intelligent temperature control technology and an efficient cooling system to ensure long-term stable operation under high load
Supports wireless remote deployment with Wi-Fi / 4G / 5G
High-strength aluminum alloy chassis and industrial-grade structural design, balancing heat dissipation performance and long-term stability

Introduction

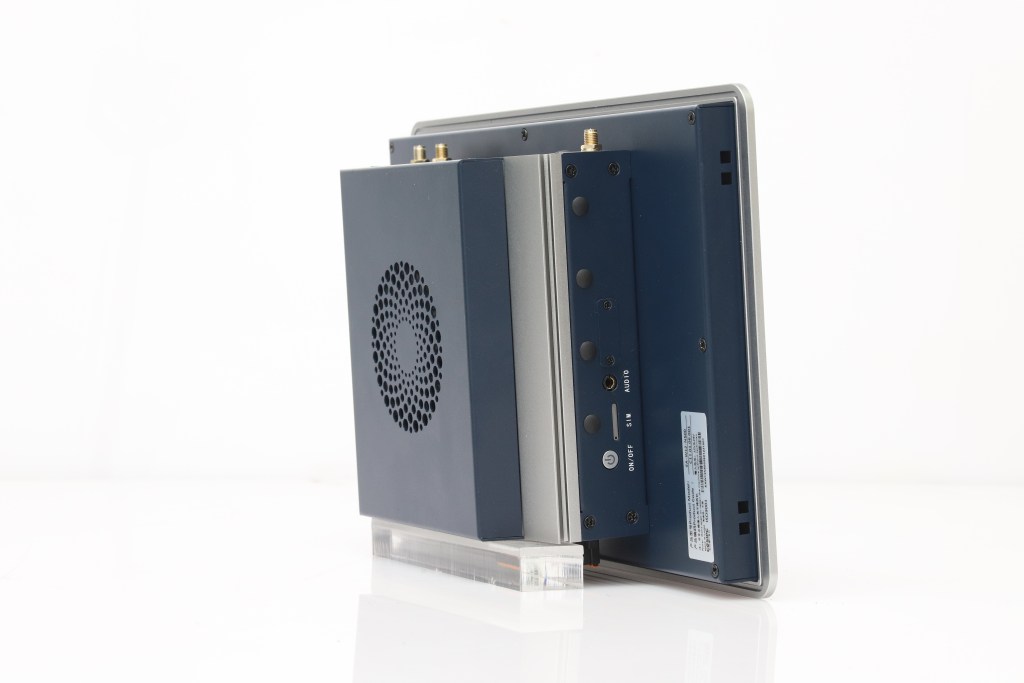

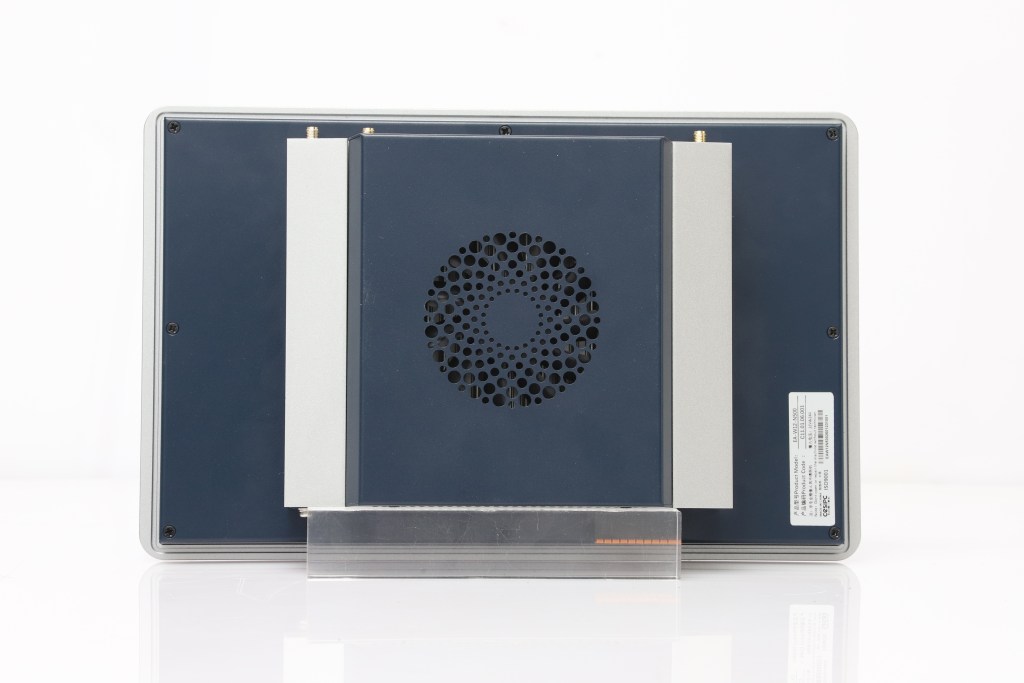

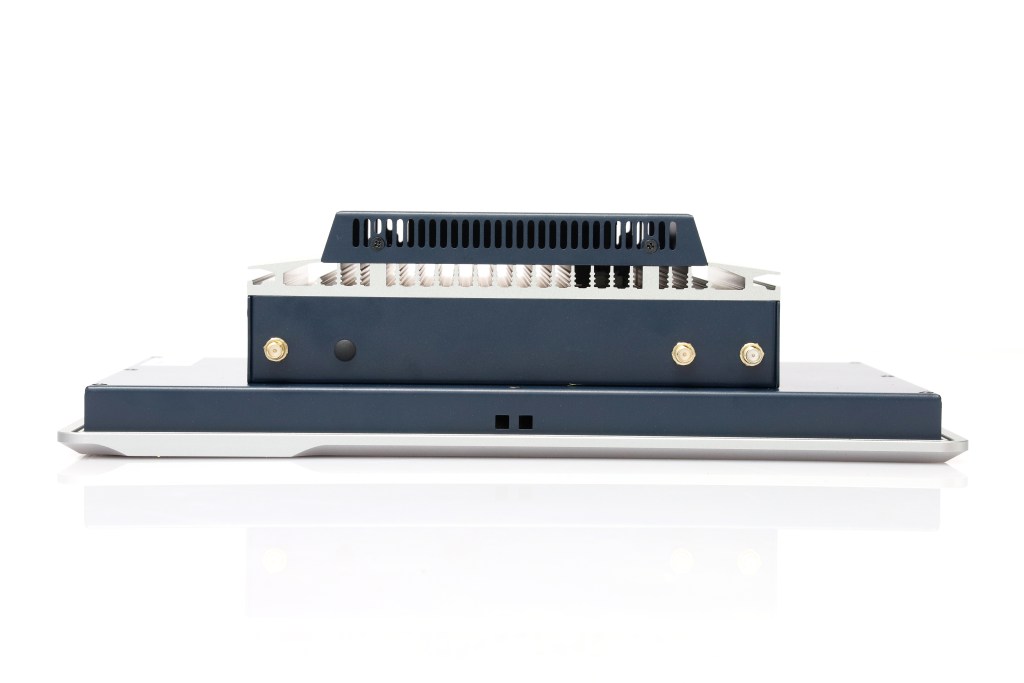

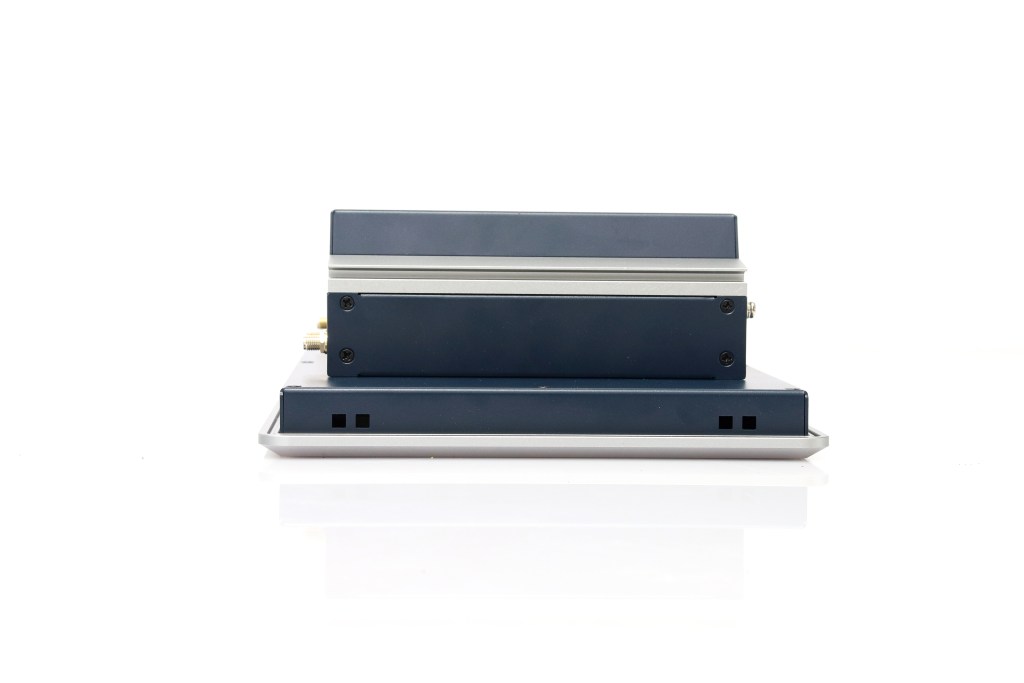

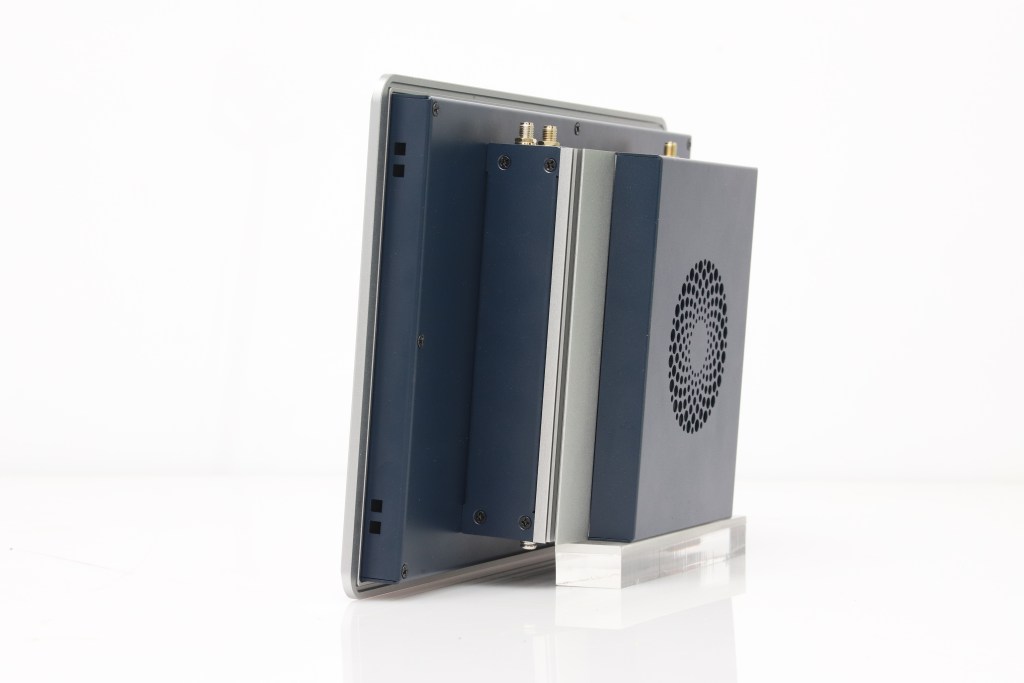

EA-W12-N500 Series Industrial Panel PC is an integrated solution combining the EA-N500 Edge AI Industrial PC with a 12.5-inch industrial-grade touch display. It is an industrial intelligent terminal that combines edge computing, visual processing, and human-machine interaction. The product supports multiple specifications of NVIDIA Jetson Orin™ NX / Nano computing modules, allowing for flexible power configuration based on application needs, to meet different levels of edge AI inference and real-time decision-making applications.

The system integrates multiple industrial-grade PoE Ethernet ports, enabling integrated power supply and data transmission for cameras, and provides rich industrial interfaces such as USB, serial ports, CAN, GPIO, making it easy to connect directly with robots, production line equipment, sensor systems, and MES/SCADA systems. The display features a 12.5-inch 16:9 TFT LCD with a resolution of 1920×1080 (FHD), equipped with P-CAP (Projected Capacitive) 10-point touch technology, offering responsive touch and precise operation.

With its industrial-grade protection design and fanless cooling structure, the device can operate reliably in harsh industrial environments, including dust, oil contamination, electromagnetic interference, extreme temperatures, and vibrations, making it ideal for industrial vision, equipment monitoring, and edge AI visualization applications.

Spec

Display

Touch	P-CAP
LCD	12.5inch
Resolution	1920 x 1080 / 16:9
Brightness (cd/㎡)	300
Contrast Ratio	500:01:00
Backlight LED Life Time	50,000 hrs (LED Backlight)

Model	Jetson Orin NX 16G	Jetson Orin NX 8G	Jetson Orin Nano 8G	Jetson Orin Nano 4G
AI Computing	157 TOPS	117 TOPS	67 TOPS	34 TOPS
GPU	Equipped with 32 Tensor Cores and 1024 CUDA Cores, NVIDIA Ampere architecture GPU		Equipped with 32 Tensor Cores and 1024 CUDA Cores, NVIDIA Ampere architecture GPU	Equipped with 16 Tensor Cores and 512 CUDA Cores, NVIDIA Ampere architecture GPU
GPU Frequency	1173MHz	1173MHz	1020MHz	1020MHz
CPU	8-Core Arm® Cortex® A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3	6-Core Arm® Cortex® A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3	6 核 Arm® Cortex® A78AE v8.2 64 位 CPU 1.5MB L2 + 4MB L3
CPU Frequency	2.0 GHz	2.0 GHz	1.7 GHz	1.7 GHz
TDP	10 W – 25 W	10 W – 20 W	7 W – 15 W	7 W – 10 W
Out Put	1x 8K30 ，HDMI 2.1	1x 8K30 ，HDMI 2.1	1x 4K30 ，HDMI 1.4	1x 4K30 ，HDMI 1.4
Memory	16GB LPDDR5	8GB LPDDR5	8GB LPDDR5	4GB LPDDR5
SSD	M.2 NVMe SSD（128GB / 256GB / 512GB）
Wi-Fi	2× Wi-Fi antennas
PoE LAN	4 × PoE Gigabit Ethernet ports
USB	4 × USB 3.0
COM	2 × COM （RS-485、RS-232 optional）
CAN	1 × CAN
GPIO	GPIO × 8（4 inputs / 4 outputs）
Expansion	4G LTE (4G/5G optional)
DC Input	3-pin Phoenix connector, 9~36V DC input
Switch	AT / ATX

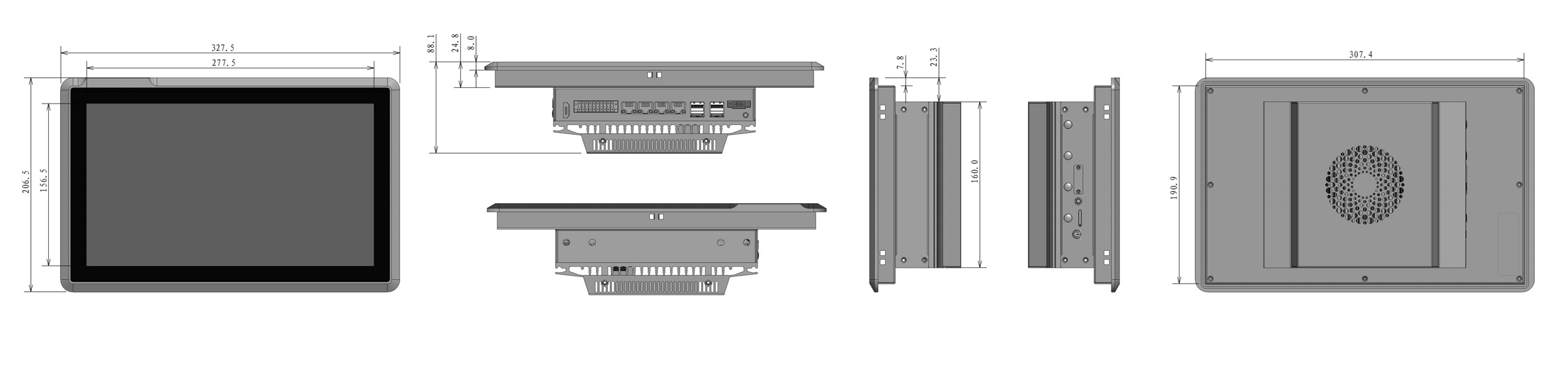

Dimensions	229（W）× 160（D）× 64.5（H）mm
Weight	3 KG N.W.
Exterior Material	6061 high-strength aluminum alloy
Structure Design	Aluminum alloy frame + rigid structure
Installation Mode	Wall-mount / VESA mounting
CMOS Cleaning	/
Cooling	CESIPC Intelligent Control System
Operating Temperature	0 ～ 50℃（optional temperature-40 ～ 80℃)
Storage Temperature	-10 ～ 60℃（optional temperature-40 ～ 80℃)
Relative Humidity	10% ～ 95%, non-condensing
Electromagnetic Compatibility	CE, FCC certified, EN 55032, EN 55035, EN IEC 61000-3-2 standard
Manufacturing System	Certified by ISO9001:2015 Quality Management System
Customization	Logo customization; I/O
MTBF	60,000 hours
OS	JetPack 6.x (Ubuntu 20.04 LTS, L4T)
