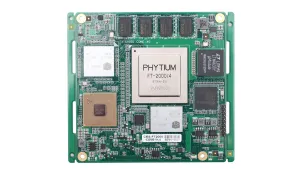

FT-2000/4 is a high-performance 64-bit ARM architecture processor launched by Phytium Information Technology Co., Ltd. It is manufactured using a 28nm process and integrates four FTC663 processor cores, with a maximum frequency of up to 3.0 GHz. The processor supports Trusted Computing 3.0 standards and is widely used in domestic desktop computing, industrial control terminals, and embedded systems.
★ High performance 64-bit ARM processor, up to 3.0 GHz
★ Supports up to 16GB DDR4 with ECC for stability
★ Rich interfaces: PCIe 3.0, USB, SATA, NVMe
★ Trusted Computing 3.0 and industrial-grade reliability
| Category | Specification |
|---|---|
| Basic Information | Product Series: Phytium FT-2000 Series · Processor Number: FT-2000/4 · Codename: FTC663 · Process: 28nm · Status: In Mass Production · Launch: 2019 |
| CPU | 4 cores / 4 threads · Base 2.6 GHz · Max 3.0 GHz · 30W TDP · Max Temp 85°C · ARMv8-A 64-bit with NEON / SIMD / FP16 · Cache: L1 32KB I + 32KB D per core, L2 1MB per core, L3 4MB |
| Memory | Up to 16GB DDR4 · 2 channels · 25.6 GB/s bandwidth · ECC supported |
| Graphics | No integrated GPU · Supports external GPU / discrete graphics |
| Expansion & I/O | PCIe 3.0 · USB 3.0 / 2.0 · SATA 3.0 / NVMe · MIPI-CSI · I2S / PCM |
| Package | BGA · Integrated CPU / Memory Controller / Security Module |
| Security & Reliability | AES / RSA / SHA encryption · Secure Boot · Trusted Computing 3.0 · Low-power sleep mode · Industrial temperature control |
| Applications | Domestic desktop PCs · Industrial control boards · Embedded terminals · Secure and trusted computing environments · Autonomous information systems |
